The DRV5033FAEDBZRQ1 device is a chopper stabilised Hall effect sensor that provides magnetic field sensing with excellent sensitivity stability and integrated protection features over the full temperature range.

Features

- Digital Omnipolar Switching Hall Sensor

- AEC-Q100 compliant for automotive applications

- Class 1: TA = -40 to 125°C

- Class 0: TA = -40 to 150°C

- Excellent temperature stability

- BOP ±10% over temperature range

- Multiple sensitivity options (BOP/BRP):

- ±3.5/±2mT

- ±6.9/±3.5mT

- Detection of North-South magnetic field

- Wide voltage range supported

- 2.7V to 38V

- No external regulator required

- Open-drain output (30mA sink current)

- 35µs fast power-up time

- Small Package Size

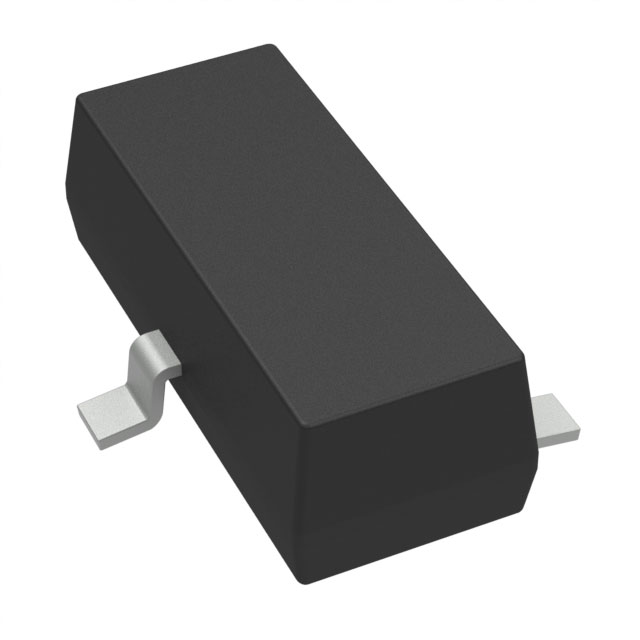

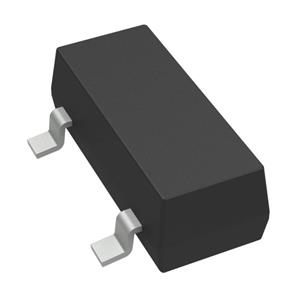

- Surface Mount 3-Pin Small Form Factor Transistor (SOT)-23(DBZ)

- 2.92mm × 2.37mm

- Plug-In 3-Pin TO-92 (LPG)

- 4.00mm × 3.15mm

- Protection Characteristics

- Reverse power protection (up to -22V)

- Supports up to 40V throw loads

- Output short circuit protection

- Output current limiting

- Battery output short circuit protection

Applications

- Docking detection

- Door switch detection

- Proximity sensing

- Valve positioning

- Pulse counting
