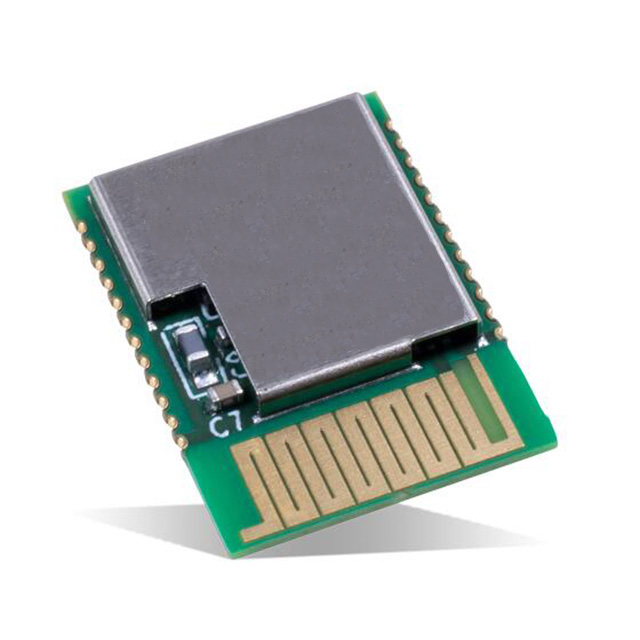

CYBT-423060-02 is Dual-mode Bluetooth BR/EDR and Low Energy wireless module solutions. It includes a royalty-free Bluetooth LE stack compatible with Bluetooth 5.0 in a small 11.0 × 11.0 × 1.70 mm module form-factor.

CYBT-423060-02 Supports a number of peripheral functions (ADC, PWM), as well as multiple serial communication protocols (UART, SPI, I2C, I2S/PCM).

Product Features

Certified to FCC, ISED, MIC, and CE standards

1024KB flash memory, 512KB SRAM memory

Industrial temperature range: –30 °C to +85 °C

Integrated Arm Cortex-M4 microprocessor core with floating point unit (FPU)

RF Characteristics

Maximum TX output power: +4.0 dbm

RX Receive Sensitivity: –95.5 dbm

Received signal strength indicator (RSSI) with 1-dB resolution

1x HCI UART for programming and HCI

1x peripheral UART (PUART)

2x SPI (master or slave mode) blocks (SPI, Quad SPI, and MIPI DBI-C)

1x I2C master/slave and 1x I2C master only

I2S/PCM audio interfaces

Up to six 16-bit PWMs

Watchdog Timer (WDT)

Bluetooth Basic Rate (BR) and Enhanced Data Rate (EDR) Support
