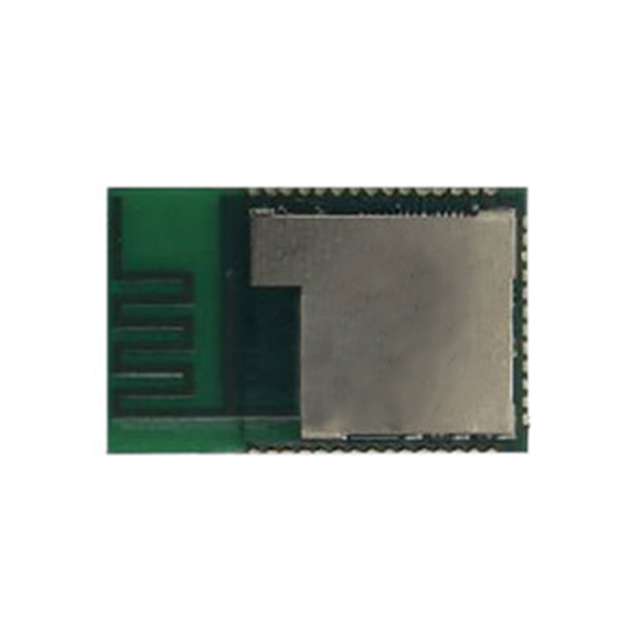

CYBLE-333073-02 is a fully integrated Bluetooth LE wireless module. It includes an onboard crystal oscillator, passive components, flash memory.

Features

Certified to FCC, ISED, MIC, and CE regulations

Castelated solder pad connections for ease-of-use

512-KB on-module serial flash memory

Up to 24 GPIOs

Temperature range: –30°C to +85°C

96-MHz Arm® Cortex®-M4 microcontroller unit MCU with floating point unit

Maximum TX output power

+12 dBm for Bluetooth® Low Energy

Bluetooth® LE connection range of up to 250 meters at 12 dBm

6x 16-bit PWMs

•rogrammable key-scan matrix interface, up to 8 × 20 key scanning matrix

Quadrature decoder

Watchdog timer (WDT)

1x peripheral UART, 1x UART for programming and HCI

1x SPI (master or slave mode)

1x I2C master

One ADC (10-ENoB for DC measurement and 12-ENOB for audio measurement)

Hardware security engine

RX current: 8 mA

TX current: 18 mA @ 12 dBm

Interval Bluetooth® LE ADV average current consumption: 30 µA

HIDOFF (Deep Sleep): 1 µA

Proven ready-to-use hardware design

Cost optimized for applications without space constraints

Nonvolatile memory for self-sufficient operation and over-the-air updates

Bluetooth® SIG listed with QDID and declaration ID

Fully certified module eliminates the time needed for design, development, and certification processes
