Start your design with the industry's first monolithic microcontroller unit (MCU) with built-in Wi-Fi connectivity. The SimpleLink CC3200R1M1RGCR device for Internet of Things (IoT) applications is a wireless MCU that integrates a high-performance ARM Cortex-M4 MCU, enabling customers to develop an entire application on a single integrated circuit (IC). On-chip Wi-Fi, Internet and robust security protocols enable faster development without prior Wi-Fi experience. The device is a complete platform solution that includes software, sample applications, tools, user and programming guides, reference designs and the TI E2E support community. The device is available in a quad flat no-lead (QFN) package for easy layout and routing.

The application MCU subsystem contains an industry-standard ARM Cortex-M4 core running at 80MHz. The device contains a variety of peripherals including a fast parallel camera interface, I2S, SD/MMC, UART, SPI, I2C, and a four-channel analogue-to-digital converter (ADC). The CC3200 family includes flexible embedded RAM for code and data, as well as ROM with external serial flash boot loader and peripheral drivers.

Product Attributes

Type: TxRx + MCU

RF Family/Standard: WiFi

Protocol: 802.11b/g/n

Modulation: DSSS, OFDM

Frequency: 2.4GHz

Data Rate (Max): 54Mbps

Power - Output: 18.3dBm

Sensitivity: -95.7dBm

Storage: 128kB RAM, 64kB ROM

Serial Interfaces: I²C, I²S, JTAG, SPI, UART

GPIO: 27

Voltage - Supply: 2.1V ~ 3.6V

Current - Receive: 53mA ~ 59mA

Current - Transmit: 53mA ~ 59mA

Operating Temperature: -40°C ~ 85°C

Mounting Type: Surface Mount

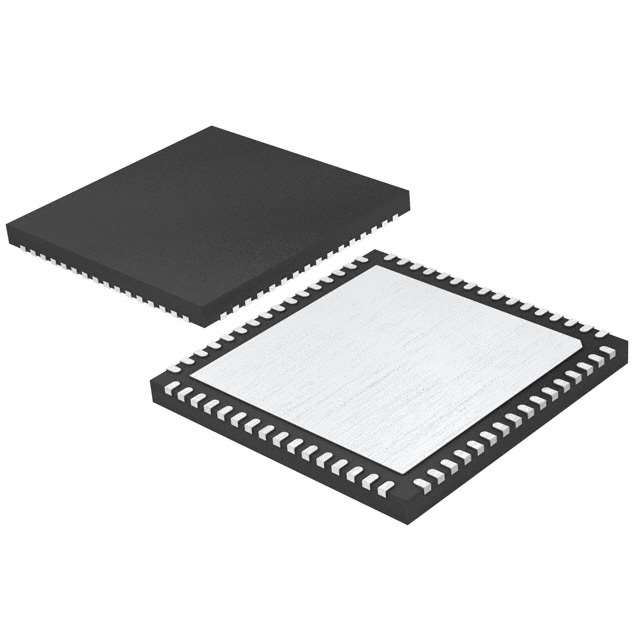

Package/Shell: 64-VFQFN Exposed Pad

Supplier Device Package: 64-VQFN (9x9)

Base Product Number: CC3200

Application Areas

- For IoT applications such as

- Cloud connectivity - Internet gateways

- Home automation - Industrial control

- Home appliances - Smart sockets and meter metering

- Access control - wireless audio

- Security systems - IP network sensor nodes

- Smart Energy
