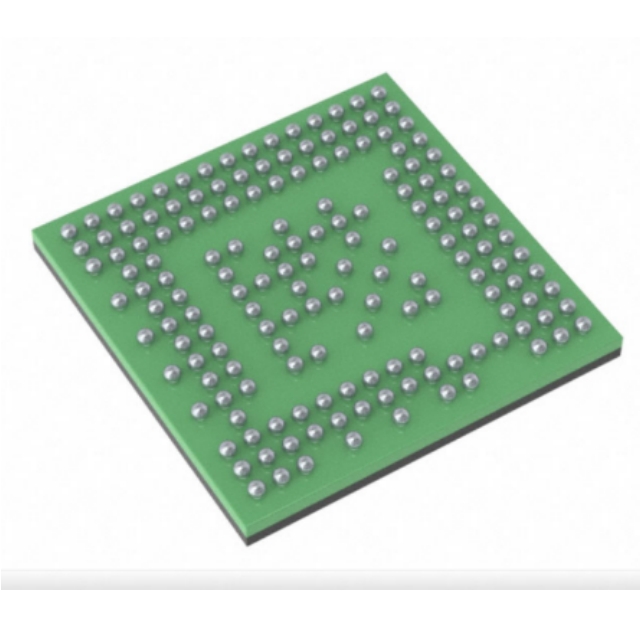

The IWR6443AQGABL is an integrated, single-chip millimetre-wave sensor based on FMCW radar technology, capable of operating in the 60-GHz to 64-GHz band. It is fabricated using Texas Instruments' low-power 45nm RFCMOS process, which provides unprecedented integration in an extremely small form factor. The device is an ideal solution for low-power, self-monitoring, ultra-precise radar systems for industry. Multiple variants are available including functional safety compliant devices and non-functional safety devices.

Features

● FMCW transceiver

● Integrated PLL, transmitter, receiver, baseband, and ADCs

● 60GHz to 64GHz coverage with 4GHz continuous bandwidth

● Four receive channels

● Three transmit channels

● 6-bit phase shifter support for TX beamforming

● Ultra-precise linear FM pulse engine based on fractional N PLLs

● TX power: 12dBm

● RX noise figure: 12dB

● Phase noise at 1MHz: -93dBc/Hz

Applications

● Industrial sensors for measuring range, speed, and angle

● Building automation

● Displacement sensing

● Gesture recognition

● Robotics

● Traffic monitoring

● Proximity and Position Sensing

● Safety and Surveillance

● Factory automation safety and security

● People Counting

● Motion Detection

● Occupancy detection
