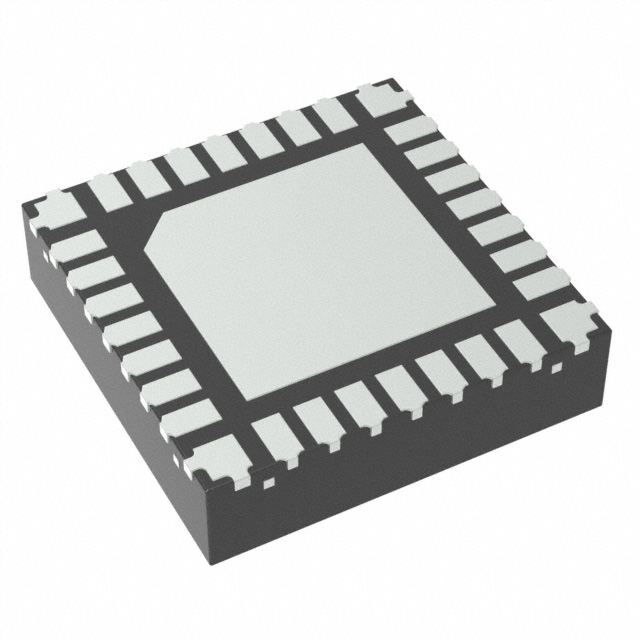

MC33HB2000FKR2 is 10A H-bridge, SPI programmable brushed DC motor driver. It is able to control inductive loads with peak currents greater than 10A.

Product Features

Thermal management: Excellent thermal resistance of <1.0 °C/W between junction and case (exposed pad)

Eight selectable slew rates via the SPI: 0.25 V/μs to more than 16 V/μs for EMI and thermal performance optimization

Four selectable current limits via the SPI: 5.4/7.0/8.8/10.7A covering a wide range of applications

Can be operated without SPI with default slew rate of 2.0V/μs and a 7.0A current limit threshold

Highly accurate real-time current feedback through a current mirror output signal with less than 5.0 % error

Drives inductive loads in a full H-bridge or Half-bridge configuration

Overvoltage protection places the load in high-side recirculation (braking) mode with notification in H-bridge mode

Wide operating range: 5.0V to 28V operation

I/O pins can withstand up to 36V

Applications

Electronic throttle control

Exhaust gas recirculation control (EGR)

Turbo, swirl and whirl and waste flap control

Electric pumps, motor control and auxiliaries
