The ADUM342E0WBRQZ is a 5.7kVRMS four-channel digital isolator based on iCoupler® technology.

Features:

High common-mode transient rejection: 180kV/μs (typical)

Low propagation delay

6.2ns Typical value (maximum value 10ns), which is used for 5V operations

Low dynamic power consumption: <1.65mA/ channel (at 1Mbps)

Safety and regulatory approval

UL Certification: 5700VRMS for 1 minute, compliant with UL 1577

VDE Certificate of Conformity (pending application)

DIN V VDE V 0884-11 (VDE V 0884-11) : 2017-01

VIORM = 1173V peak

Enhanced surge isolation voltage: 10000V (peak)

CSA certification, in compliance with IEC 62368-1 and IEC 61010-1 (in progress)

TUV Sud certified in accordance with EN 62368-1 (in progress)

CQC certification, in line with GB4943.1-2022 standard (in progress)

Highly inhibited radiation and conducted noise

2.25V to 5.5V level conversion

Guaranteed maximum data rate: 150Mbps (5V operating voltage)

+125°C high temperature operation

±8kV IEC 61000-4-2 ESD protection (entire isolation grid)

±5kV HBM ESD protection on input/output pins

Failure-proof High (E1) or low (E0) option

16-pin, RoHS compliant SOIC package

Backward compatibility

ADuM1400/ADuM1401/ADuM1402

ADuM2400/ADuM2401/ADuM2402

ADuM140E/ADuM141E/ADuM142E

ADuM240E/ADuM241E/ADuM242E

Meets AEC-Q100 standard for automotive applications

Description:

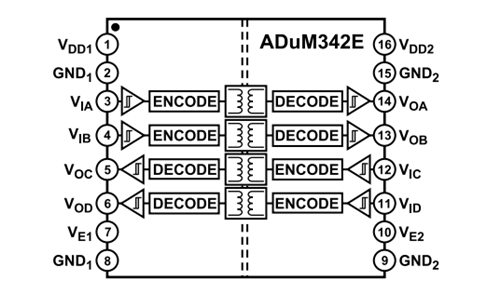

The ADuM342E is a four-channel digital isolator based on Analog Devices' iCoupler® technology. These isolation elements combine high-speed, complementary metal oxide semiconductor (CMOS) and back-to-back monolithic air-core transformer technologies to provide outstanding performance characteristics and meet the CISPR 32/EN 55032 Class B limit of 5Mbps. At 5V operation, the maximum propagation delay is 10ns and the pulse width distortion is less than 3ns. At a maximum of 3.0ns, the channel matching is tight.

The ADuM342E data channel is self-contained and available in a variety of configurations with a withstand voltage rating of 5.7kV RMS. These kits operate at supply voltages (either end) between 2.25V and 5.5V, are compatible with lower voltage systems, and support voltage conversion across isolation grids.

With two different fail-safe options, the output can be converted to a predetermined state when the input power is not connected.

Applications:

Serial Peripheral Interface (SPI)/ data converter isolation

RS-485 interface and controller LAN with Flexible Data Rate (CAN FD) industrial fieldbus isolation

PWM controller signal isolation

Universal multichannel isolation
