About Tiger Eye™ Long Life, High Reliability Connectors:

Available in three pitch options (0.80 mm, 1.27 mm and 2.00 mm), Samtec's durable micro interconnectors feature Tiger Eye™ terminal systems for high reliability and long life applications. Multi-fingered beryllium copper terminals provide redundant contact points and the best combination of mechanical and electrical properties. Design flexibility is enhanced by the choice of surface mount or through-hole end connections, as well as reinforcement features such as vertical or right-angle orientation, friction latching, welding pieces and latching.

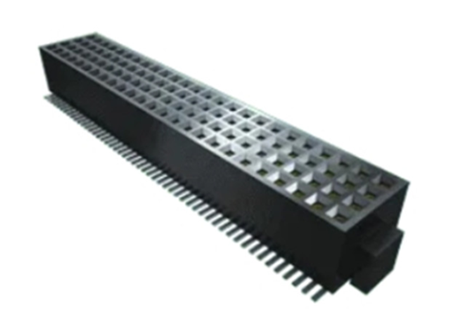

The FOLC series is a 1.27mm pitch FOURRAY™ four-row Tiger Eye™ socket connector

Product name: FOLC-120-01-S-Q-LC

Connector type: socket

Contact type: female socket

Style: Board to board

Needle number: 80

Number of pins loaded: All

Pitch - Connection: 1.27mm

Number of rows: 4

Row spacing - Connection: 1.27mm

Installation type: Through hole

End connection: welding

Fastening type: push-pull type

Contact surface treatment - Fitting: gold plating

Contact surface treatment thickness - Connection: 30.0µin (0.76µm)

Insulation color: black

Insulation height: 4.57mm

Contact length - column: 1.91mm

Operating temperature: -55°C ~ 125°C

Material flammability grade: UL94 V-0

Contact surface treatment - Column: tin

Joint stack height: -

Intrusion prevention: -

Features: Plate lock

Rated current (ampere) : 2.6A/ contact

Rated voltage: -

Application: -

Insulation material: Liquid Crystal Polymer (LCP)

Contact shape: square

Contact material: copper beryllium

Main features:

Application: Thimble four-row multi-contact finger beryllium copper terminal system with up to 200 terminals

Terminal system: Tiger Eye™

Up to 8 Gbps performance

Assembly direction: vertical

Spacing: 1.27 mm

Feature: Optional low insertion force terminals

Stitching: through hole, mixed technology
