Overview:

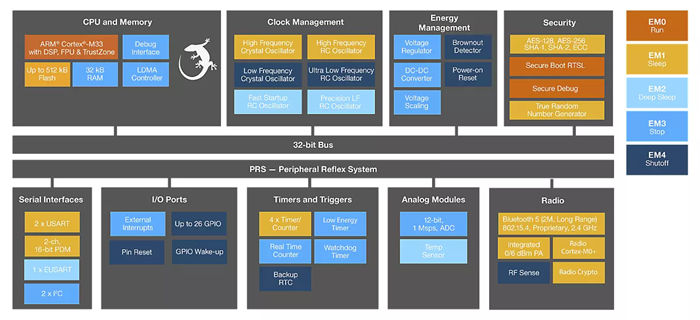

The EFR32MG22 Series 2 Wireless SoC, the EFR32MG22E224F512IM32 is designed with a strong focus on energy efficiency. It contains a 76.8 MHz ARM Cortex-M33 core that delivers superior processing power, while its integrated security features allow for fast encryption. The device comes with 512 kB of flash memory, 32 kB of RAM, and is packaged in QFN32.

The EFR32MG22E224F512IM32 has a maximum power output of up to 6 dBm and excellent receiving sensitivity: The -102.1 (250 kbit/s OQPSK) dBm provides a robust RF link to ultra-low-power Zigbee terminal nodes, including green power applications, for reliable communication and industry-leading energy efficiency.

The EFR32MG22E224F512IM32 device uses the same tools as the EFR32MG Series 1 to provide easy migration and reduce time to market with development kits, SDKS, mobile applications and our patented network analyzer.

Detailed parameter

Product name: EFR32MG22E224F512IM32-C

Core: ARM Cortex M33

Maximum data rate: 1 Mbps

Output power: 6 dBm

Sensitivity: -96.2dBm

Supply voltage - Minimum: 1.71V

Power supply voltage - Max: 3.8V

Receiving power supply current: 3.6mA

Transmission supply current: 8.2mA

Program memory size: 512 kB

Minimum operating temperature: -40 °C

Maximum operating temperature: + 125°C

Package/Box: QFN-32

Package: Tray

ADC resolution: 12 bit, 16 bit

Trademark: Silicon Labs

Data bus width: 32 bit

Data RAM size: 32 kB

Data Ram type: RAM

Height: 0.85mm

Interface type: I2C, UART

Length: 4 mm

Max clock frequency: 76.8 MHz

Humidity sensitivity: Yes

Installation style: SMD/SMT

Number of input/output ports: 18 I/ OS

Timer quantity: 1 x 32 bit, 4 x 16 bit

Product type: RF System on a Chip-SoC

Program memory type: Flash

Applications

• Zigbee Green power

• Zigbee terminal devices and home automation

• Lighting controls

• Building control

• Industrial sensors

• Energy harvesting

• Smart building sensors

• Kinetic energy switch

• Condition monitoring
