(Recycled) Samtec IP5-08-05.0-L-S-1-TR: 4.00mm IsoRate® 50 ohm highly isolated RF plug

(Recycled) Samtec IP5-08-05.0-L-S-1-TR: 4.00mm IsoRate® 50 ohm highly isolated RF plug

Source:our siteTime:2024-08-22Views:

Samtecs IsoRate 50 ohm highly isolated RF connector costs about half the cost of a conventional RF connector, resulting in significant savings.FeaturesTraditional RF connectors have half the cost and the same performanceHighly isolated Edge Rate termi…

Samtec's IsoRate® 50 ohm highly isolated RF connector costs about half the cost of a conventional RF connector, resulting in significant savings.


Features

Traditional RF connectors have half the cost and the same performance

Highly isolated Edge Rate® terminals

50 ohm board to board system

50 ohm full linkage system or two options for linkage with industry standard ports

Provide a positive lock

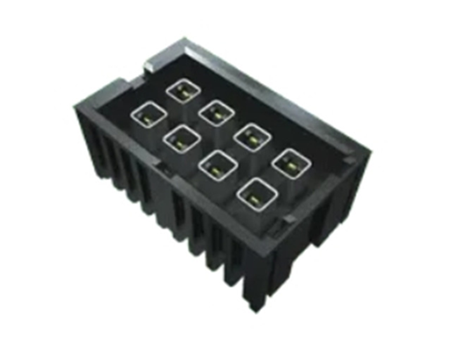

IP5 Series: 4.00mm IsoRate® 50 ohm highly isolated RF plug strip


Detailed parameter

Product name: IP5-08-05.0-L-S-1-TR

Connector style: coaxial

Connector type: Plug, female socket

Contact end connection: welding

Protection terminal: -

Impedance: 50 ohms

Installation type: Through hole

Installation features: -

Cable group: -

Fastening type: -

Frequency - Max. : 9.5 GHz

Number of ports: 8

Features: -

Case color: black

Intrusion prevention: -

Center contact material: copper alloy

Include: -

Base material: polyamide (PA), nylon

Substrate surface: -

Center contact coating: gold plating

Dielectric material: Liquid Crystal Polymer (LCP)

Operating temperature: -55°C ~ 125°C

Rated voltage: 200 V


Features

4.00 mm spacing

90% performance at 50% of the cost of conventional RF

Performance: 9.5GHz / 19Gbps

Needle position: 1,2,4,6,8,12,16

Row: Single row

Stack height: 10.00 mm
