The DLPC964ZUM is a digital controller for DLP991UFLV digital micromirror devices.

Details

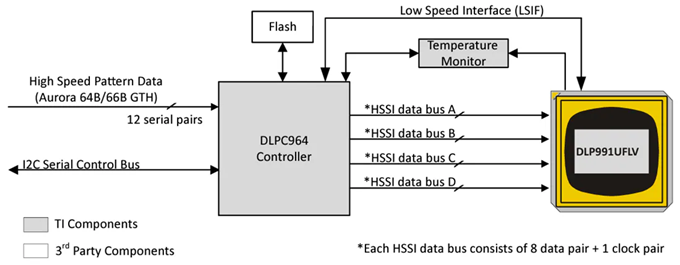

The DLPC964 controller can be used with the DLP991U Digital Micromirror device (DMD). The controller provides a high-speed data and control interface to the DMD, enabling binary graphics rates up to 12.4kHz. These fast graphics rates make DLP technology stand out from other spatial light modulators and provide a strategic advantage for devices that need fast, precise, and programmable light source control capabilities. The DLPC964 provides the required clock pulse and timing information for DMD. The controller offers unique functionality and value and is ideally suited to support a wide range of direct imaging, industrial and advanced display applications.

In DLP based electronic solutions, the image data from the DLPC964 input port to the projected image is 100% digital data. Images always remain in digital format and are not converted to analog signals. The DLPC964 processes digital input images and converts the data to the image format required by the DMD to ensure correct display. The DMD then directs the light to the location determined by the pixel data loaded into the DMD.

Features

• Run DLP991U DLP® DMD

Continuous streaming of input data over 12 HSS input channels up to 120 GBPS

• Supports high graphics rates up to 12.4kHz per second for binary graphics

• 32-channel Differential high-speed Serial Interface (HSSI) data bus interface

• Random DMD block addressing and LOAD2 loading

• Compatible with a variety of user-defined FPgas

• I2C interface for control and status query

Applications

• Lithography

- Direct imaging

- Flat panel display

- Printed circuit board manufacturing

• Industry

- 3D Printing

- 3D scanner for machine vision

- Quality control

• Display

- 3D imaging

- Augmented reality and information overlay
