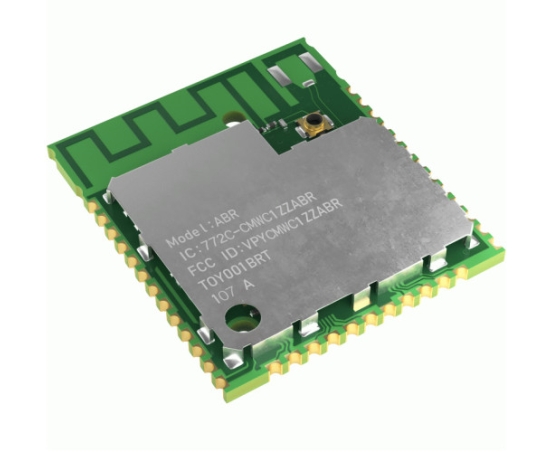

The CMWC1ZZABR-107 is a Wi-Fi ® 11b/g/n+MCU module with integrated PCB antenna


Overview:

Murata ABR Wi-Fi ® 11b/g/n+MCU module with integrated PCB antenna is based on NXP 88MW320 wireless microcontroller. It supports the Matter protocol as well as Wi-Fi 802.11b/g/n, PHY data rates up to 72.2Mbps, and integrates a 200MHz Arm® Cortex®-M4F MCU for host side applications. This module provides a complete network controller solution through a simple UART interface. The module directly comes with Wi-Fi, TCP/IP, security requirements, and other network application features. The Murata ABR Wi-Fi 11b/g/n+MCU module is available in a small size (22mm x 19mm x 2.4mm) package for easy integration into size - and power-sensitive applications. Typical applications include the Industrial Internet of Things (IIoT), smart homes, sensor networks and gateways.


——Features

Support Matter protocol

Compliant with AWS standards

2.4GHz Wi-Fi+MCU module with integrated PCB antenna

uAP and STA dual-mode network topology

NXP 88MW320 chipset

Arm Cortex-M4F processor

DSSS/CCK/OFDM modulation

Overall dimensions: 22mm x 19mm x 2.4mm

Passed FCC/IC certification

Software on the module

The module features 802.11b/g/n 72.2Mbps, an in-house running Wi-Fi stack, 512KB SRAM, 128KB mask ROM, and 2MB SPI flash memory

Full support for NXP WMSDK tools

Operating temperature range: -30°C to +85°C

Comply with RoHS directive


——Applications

• Matter Agreement

• Internet of Things

• Smart home

• Sensor network

• Gateway
