Supply, Recycle KSZ9021GQI [Microchip] Gigabit Ethernet Physical Layer Transceiver

Supply, Recycle KSZ9021GQI [Microchip] Gigabit Ethernet Physical Layer Transceiver

Source:our siteTime:2024-07-06Views:

Shenzhen Mingjiada Electronics Co., Ltd. Supply, Recycle KSZ9021GQI [Microchip] Gigabit Ethernet Physical Layer TransceiverDescriptionKSZ9021GQI is a completely integrated triple speed (10Base-T/100Base-TX/1000Base-T) Ethernet Physical Layer Transceiv…

Shenzhen Mingjiada Electronics Co., Ltd. Supply, Recycle KSZ9021GQI [Microchip] Gigabit Ethernet Physical Layer Transceiver


Description

KSZ9021GQI is a completely integrated triple speed (10Base-T/100Base-TX/1000Base-T) Ethernet Physical Layer Transceiver for transmission and reception of data on standard CAT-5 unshielded twisted pair (UTP) cable. The KSZ9021GQ provides the industry standard GMII/MII (Gigabit Media Independent Interface / Media Independent Interface) for direct connection to GMII/MII MACs in Gigabit Ethernet Processors and Switches for data transfer at 1000 Mbps or 10/100Mbps speed.

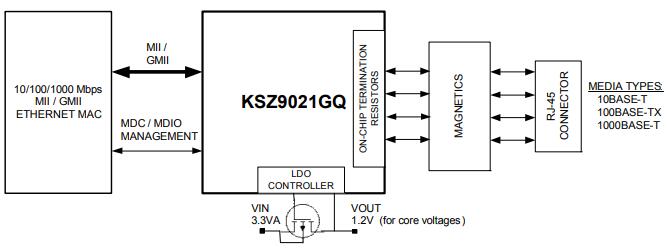

KSZ9021GQI - Functional Diagram:



Product Features

Single-chip 10/100/1000Mbps IEEE 802.3 compliant Ethernet Transceiver

GMII/MII standard compliant interface

Auto-negotiation to automatically select the highest link up speed (10/100/100Mbps) and duplex (half/full)

On-chip termination resistors for the differential pairs

On-chip LDO controller to support single 3.3V supply operation – requires only external FET to generate 1.2V for the core

Jumbo frame support up to 16KB

125MHz Reference Clock Output

Programmable LED outputs for link, activity and speed

Baseline Wander Correction

Loopback modes for diagnostics

Automatic detection and correction of pair swaps, pair skew and pair polarity

MDC/MDIO Management Interface for PHY register configuration

Interrupt pin option

Power down and power saving modes


If you have a requirement, please call Mr. Chen for advice at:

Tel: +86 13410018555

E-mail: sales@hkmjd.com

Home page URL: www.hkmjd.com
