Product description

The R7FA2A2BD3CFN 32-bit microcontroller (MCU) is based on the 48MHz Arm Cortex-M23 core with rich peripheral features for a variety of applications. The RA2A2 microcontroller features a high-resolution ADC, continuous firmware update capability, segmented LCD, and low-power operation that simplifies system design. RA2A2 MCUS support 24-bit Σ-Δ ADCs, dual-group code flash, stand-alone power RTC and segmented LCDS for energy management and general-purpose applications. These microcontrollers are available in 64-pin to 100-pin package options in LFQFP package.

These microcontrollers use a variety of power supply structures and voltage detection hardware to enable energy-efficient ultra-low power operation. Independent power Supply RTC (IRTC) enables long battery life and is suitable for applications that require long service life management under extreme conditions. Typical applications include industrial and building automation, home appliances, medical and health care, consumer electronics, and system control for energy management (including next-generation smart meters).

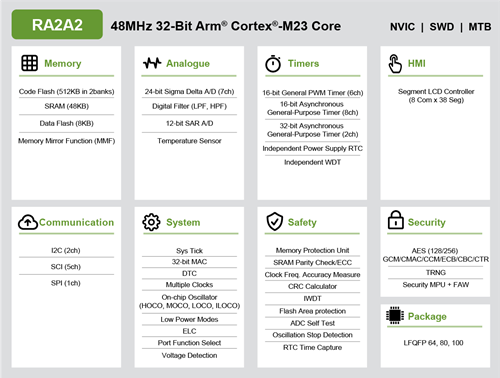

Product Features

48MHz Arm® Cortex®-M23:

Single-chip 32-bit Arm MCUS combine the RA family's rich analog portfolio with rich peripheral features to deliver a better design experience

Enables advanced analog sensing while reducing power consumption, system cost, and overall footprint

512KB flash (2 sets), 48KB SRAM (16kB: ECC, 32kB: parity) and 8KB data flash

64-pin to 100-pin expandable option with LFQFP

24-bit sigma-δ analog-to-digital converter, digital filter and 12-bit SAR analog-to-digital converter

The 24-bit ADC enables low-power, high-resolution analog-to-digital conversion for power-sensitive applications

16-bit GPT, 16-bit and 32-bit LPAGT, and Standalone RTC (IRTC)

A variety of power supply structures and voltage detection hardware to achieve energy-saving, ultra-low power operation

Multiple serial communication interfaces:

5-channel SCI, 1-channel SPI and 2-channel ILOCKC

Segment LCD (8comx38 segment)

32-bit multiplicative accumulator

Safety and security

Dual group and group switching functions, implementing FOTA for continuous operation

Product application

Energy management

Electricity meters, flow meters, electric vehicle chargers and data loggers

Industrial automation

Sensors, circuit breakers, digital instruments, safety modules and actuators

Building Automation:

Smoke detectors, HVAC, thermostats, heat pumps, alarm systems and lighting

Household Appliances:

Air conditioning, water heater, air purifier, washer/dryer, refrigerator and scale

Medical and health care

Fitness trackers, high-end portable devices, background music, diagnostics and imaging

Consumer Electronics:

Remote controllers, PC peripherals, wearables and iot edge devices
