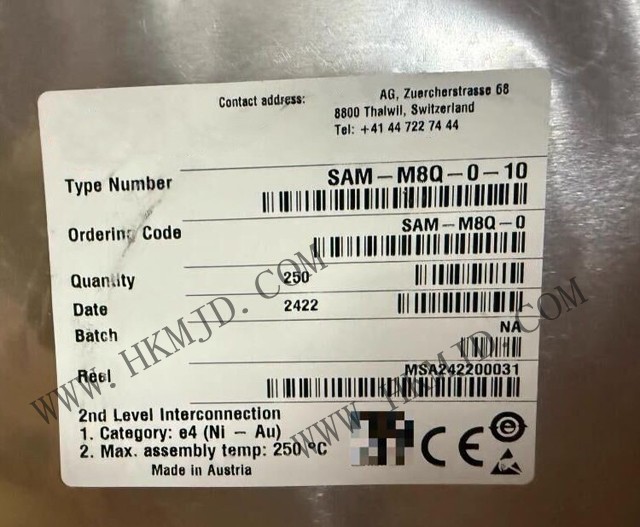

In stock: u-blox SAM-M8Q-0-10 GNSS Surface Mount Antenna Module (SAM-M8Q Series)

In stock: u-blox SAM-M8Q-0-10 GNSS Surface Mount Antenna Module (SAM-M8Q Series)

Source:our siteTime:2025-07-18Views:

u-blox SAM-M8Q-0-10 GNSS Antenna Module Product Description:The SAM-M8Q-0-10 is a GNSS (Global Navigation Satellite System) receiver module with an integrated antenna, developed by u-blox. It features an ultra-compact package measuring 15.5 15.5 6.3…

u-blox SAM-M8Q-0-10 GNSS Antenna Module Product Description:

The SAM-M8Q-0-10 is a GNSS (Global Navigation Satellite System) receiver module with an integrated antenna, developed by u-blox. It features an ultra-compact package measuring 15.5 × 15.5 × 6.3 mm and is suitable for embedded applications such as asset tracking, automotive electronics, and industrial IoT (IIoT). The module is based on the u-blox M8 GNSS engine, supporting simultaneous reception of GPS, GLONASS, and Galileo signals, and providing high-precision positioning capabilities.


Key features of u-blox SAM-M8Q-0-10

Integrated antenna design: Built-in broadband patch antenna eliminates the need for additional RF design, simplifying integration.

Strong anti-interference capability: Combines SAW filters and low-noise amplifiers (LNAs) to effectively suppress cellular signal interference.

High sensitivity: Supports -165dBm signal reception, suitable for complex environments such as urban canyons.

Low power consumption: Operating voltage of 2.7V to 3.6V, suitable for battery-powered devices.

Industrial-grade reliability: Operating temperature range of -40°C to +85°C, compliant with AEC-Q100 standards.


u-blox SAM-M8Q-0-10 Typical Applications

Asset tracking (logistics, container monitoring)

Automotive telematics (T-Box, OBD devices)

Drone navigation (precision positioning)

Industrial automation (AGV, robot navigation)


For purchasing or product inquiries, please contact Mingjiada Electronics (stock available):

Mr. Chen +86 13410018555

Email: sales@hkmjd.com

Official website: www.hkmjd.com
