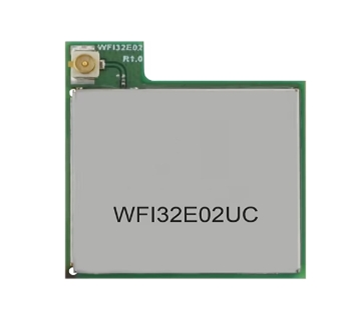

Microchip WFI32E02UC-I High Pin Count (HPC) Wi-Fi®MCU module

Microchip WFI32E02UC-I High Pin Count (HPC) Wi-Fi®MCU module

Source:our siteTime:2024-06-06Views:

The WFI32E02UC-I High Pin Count (HPC) Wi-Fi MCU module features 60 GPIO pins and is specifically designed for Industrial Internet of Things (IoT) applications.

Product Description:

The WFI32E02UC-I features 60 GPIO pins and is designed for industrial iot applications. It is based on a high-performance 200 MHz MIPS 32m-class microprocessor PIC32MZ-W1 Wi-Fi SoC.

In addition to a powerful kernel, the WFI32E02UC module also provides advanced features to help implement application functions.

Industry-leading connectivity with a fully certified Wi-Fi MCU module supporting 2.4GHz 802.11b /g/n radio mode.


Product features:

PCB or external antenna options

The on-board FEM/PA meets TX power requirements, with a maximum TX power of 20.5dBm in 802.11b mode

Integrated Trust&GO Security (Optional)

Integrated 40MHz POSC clock management

20 advanced analog channels

60 GPIO pins

Operating voltage range: 3.0V to 3.6V

Operating frequency range: DC to 200MHz

87-pin two-row SMD package with shielded CAN, measuring 24.5mm x 22.5mm x 2.5mm

Operating temperature range: -40 °C to +85 °C

Certified to FCC, ISED, CE, UKCA, MIC, KCC, NCC and SRRC radio specifications

Comply with RoHS directive and REACH standard

Designed for industrial IoT applications
