Broadcom [APDS-9500] Imaging gesture and proximity sensors

Broadcom [APDS-9500] Imaging gesture and proximity sensors

Source:our siteTime:2024-06-05Views:

The Broadcom APDS-9500 imaging gesture and proximity sensor recognizes nine gestures, including up, down, left, right, forward, back, clockwise, counterclockwise, and wave.

Overview:

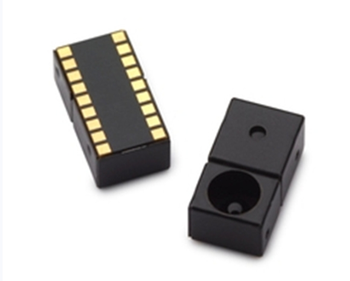

The Broadcom APDS-9500 Imaging gesture and proximity sensor provides image-based gesture recognition with an I2C bus interface in a single 18-pin package. The sensor recognizes nine gestures, including up, down, left, right, forward, back, clockwise, counterclockwise, and waving. The gesture information is easily accessible via the I2C bus. The sensor also has a built-in proximity detection function, which can sense the approach or departure of objects.


Functional block diagram:


Features:

- Image-based proximity and gesture sensors in the optical module

- Gesture output

- Nine gesture recognition

- Close to output

- Object brightness output

- Object size output

- Cursor mode output

-X and Y output

- Image output

- SPI output

- 30 x 30 pixels /60 x 60 pixels

- 9 bits grayscale

- Resist ambient light interference

- Compatible with I2C bus interfaces

- Data rate up to 400 kHz

- Dedicated interrupt pins

- Flexible power saving mode

- VDD voltage range is 2.8V to 3.3V

- The I/O voltage ranges from 1.8V to 3.3V

- Small package: 6.87 × 3.76 × 2.86mm (L × W × H)


Applications:

• Gesture detection

• The touch screen of the phone is disabled

• Mechanical switch replacement

• Frontal face tracking
