The LT3085IMS8E device is an adjustable low-dropout linear regulator launched by (ADI), featuring an MSOP-8 package and the following key characteristics:

It is possible to output in parallel to achieve higher power and better heat dissipation

Output current: 500mA

Set the output voltage for a single resistor

An initial accuracy of 1% for the SET pin current

The adjustable output voltage reaches 0V

The current-limiting value remains constant within the temperature range

Low output noise: 40μVRMS (10Hz to 100kHz)

Wide input voltage range: 1.2V to 36V

Low pressure difference: 275mV

Load adjustment rate < 1mV

Linear adjustment rate < 0.001%/V

Minimum load current: 0.5mA

Maintain stability by using the lowest 2.2μF ceramic capacitor

Current-limiting return protection and over-temperature protection

8-pin MSOP package

Passed the AEC-Q100 automotive application certification

Details of LT3085IMS8E

The LT3085IMS8E is a 500mA low-dropout linear regulator that can increase output current or dissipate heat on surface mount circuit boards by parallel connection. This new type of voltage regulator is specifically designed to be used as a precise current source and voltage follower, and can be applied in many scenarios that require high current, zero adjustability, and no heat sink. In addition, the LT3085IMS8E also leads out the collector of the transfer transistor to achieve low-dropout (as low as 275mV) operation when used with a second power supply.

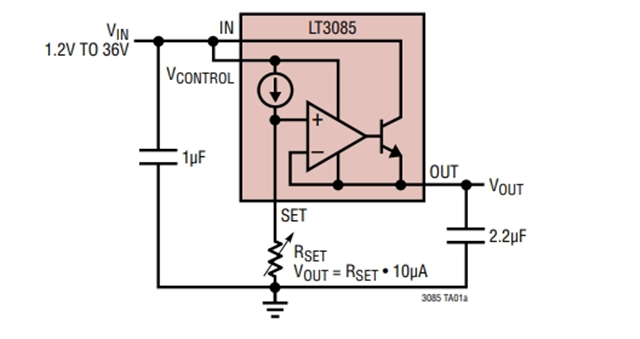

One of the important features of the LT3085IMS8E is its ability to provide a wide output voltage range. By using a reference current flowing through a single resistor, the output voltage can be set at any level between 0V and 36V. When a 2.2μF capacitor is used at the output end, the LT3085IMS8E can achieve stability. Moreover, this IC employs small ceramic capacitors, unlike the additional ESR commonly found in other regulators.

The internal protection circuit includes current limiting and thermal limiting. The LT3085IMS8E voltage regulator adopts an 8-pin MSOP package (this package features an exposed pad for improving thermal characteristics).

Application scenarios

The LT3085IMS8E voltage regulator is suitable for high-current, no-heat sink scenarios, including

High-current full surface mount power supply

High-efficiency linear voltage regulator

A rear voltage regulator for switching power supplies

Low-component-number variable voltage power supply

Low output voltage power supply

Shenzhen Mingjiada Electronics Co., LTD. (Supplying ADI) LT3085IMS8E adjustable 500mA single-resistance low-dropout voltage regulator (LDO). If you have any needs, please feel free to contact us online
