Description:

Broadcom ACPL-C797T-000E is an optically isolated, 1-bit, 2-order Sigma-Delta (Σ-Δ) modulator device that complies with AEC-Q100 Class 1 automotive certification standards. Based on optical coupling technology, the device converts analog input signals into high-speed data streams through current isolation. The device is powered by a 5V supply and has a dynamic range of 79 dB. The 200 mV differential input range (full scale 320 mV) is ideal for directly connecting shunt resistors or other low-level signal sources in applications such as motor phase current measurement.

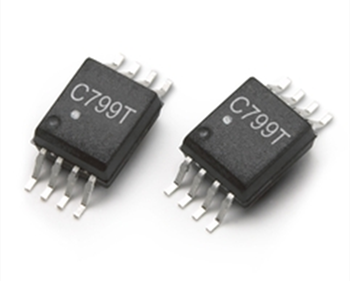

The device comes in a compact surface-mount stretch SO-8 package that provides motor drive designers with the reliability, small size, excellent isolation and stability across the automotive temperature range they need to accurately measure current. Broadcom Coupler isolation products provide the enhanced insulation and reliability required for critical automotive and high-temperature industrial applications.

Functional block diagram:

Functional features:

Meets AEC-Q100 Level 1 test criteria

Car operating temperature -40 to +125°C

One-bit, second-order sigma-δ modulator

10MHz internal clock

16-bit resolution, no code (12-bit ENOB)

Signal to noise ratio (SNR) : Typical value 79 dB

Gain error: ±1

±200mV linear range, single 5V power supply (±320mV full scale)

Digital interface Wide power range: 3 to 5.5V

High common-mode rejection: 25 kV/μs

Compact surface mount stretch SO-8 package

Global Safety Certification:

UL 1577 (5000 VRMS/1 min.)

IEC/EN/DIN EN 60747-5-5:14 14VPEAK Operating voltage

Applications:

• Automotive motor phase current and guide current detection

• Automotive motor inverter DC bus voltage detection

• Automotive DC/DC converter voltage/current detection

• Automotive AC/DC (charger) voltage/current detection

• Automotive battery pack voltage/current detection

• Universal voltage/current detection and monitoring
