Product Description:

The TPSM8S6B24 is a highly integrated, easy-to-use, non-isolated DC/DC step-down power module with the addition of manufacturer-specific PMBus commands. The new EXTENDED_WRITE_PROTECT and PASSKEY improve security by limiting write capabilities at a higher resolution than standard write protection commands, helping to prevent malicious access to PMBus.

The TPSM8S6B24 is a 25A power module that pulls up to 100A of current with 4x stacking capability. The device can overdrive the internal 5V LDO via an external 5V power supply to achieve a lower input voltage range as low as 2.95V and improve the efficiency of the converter.

The TPSM8S6B24 power module uses a proprietary fixed frequency current mode control with input feedforward and optional internal compensation elements to minimize size and improve stability at various output capacitors.

Applications:

• Data center switches, rack servers

• Active antenna systems, remote RF and baseband units

• Automated test equipment, CT, PET and MRI

• ASics, SOCs, FPgas, DSP cores and I/O voltages

Features:

• Integrated extended security features

4.25V to 16V, PVIN is connected to AVIN and internal LDO

2.95V to 16V, PVIN and AVIN dual power supply, or external bias range on VDD5

• Integrated MOSFETs, inductors and basic passive devices

• Average current mode control with optional internal compensation

• 0.5V to 5.5V output voltage range achieved through pin bonding

• 0.25V to 5.5V PMBus® VOUT_COMMAND range

Extensive PMBus command set for telemetering VOUT, IOUT, and kernel temperatures

• Differential remote sensing via internal feedback divider, with < 1% VOUT error detected

• -40 °C to +125°C TJ

• AVS and margin regulation via PMBus

• Multi-Function Select (MSEL) pins that use pin lapping to program PMBus defaults

• Nine optional switching frequency ranges: 275kHz to 1.1MHz

• Frequency sync input/sync output

• Supports pre-biased output

• 16mm x 11mm x 4.3mm, 45-pin MOY package

Create custom designs with TPSM8S6B24 and WEBENCH® Power Designer

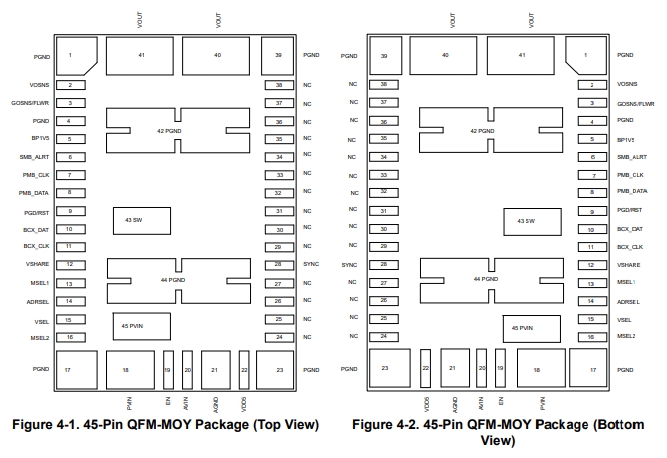

TPSM8S6B24 Pin package:

If you need TPSM8S6B24MOYR, or need BOM table matching order, please feel free to contact us!
