[Supply] IR2304STRPBF (Infineon) Half-Bridge Gate Driver IC With Shoot Through Protection

Shenzhen Mingjiada Electronics Co., Ltd.——Long term supply of Infineon (IR2304STRPBF) gate driver ICs with typical 0.29 A pull current and 0.6 A sink current in 8-pin SOIC package for IGBTs and MOSFETs.

Product Details:

Model No.: IR2304STRPBF

Package: SOIC-8

Type: Half Bridge Gate Driver

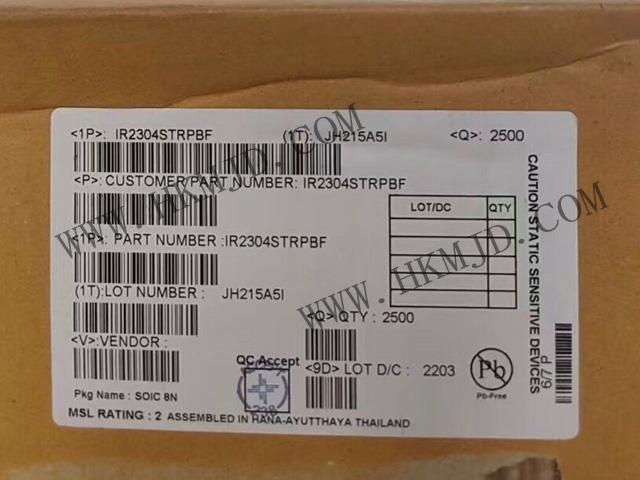

IR2304STRPBF Product Diagram:

IR2304STRPBF Specifications:

Drive Configuration: Half Bridge

Channel Type: Standalone

Number of Drivers: 2

Gate Type: IGBT, MOSFET (N-Channel)

Voltage - Supply: 10V ~ 20V

Logic Voltage - VIL, VIH: 0.8V, 2.3V

Current - Peak Output (Pour-In, Pull-Out): 60mA, 130mA

Input Type: Non Inverting

High Side Voltage - Maximum (Bootstrap): 600 V

Rise/Fall Time (Typical): 200ns, 100ns

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

Package/Housing: 8-SOIC (0.154", 3.90mm Width)

Vendor Device Package: 8-SOIC

IR2304STRPBF Product Features:

Floating channel designed for bootstrap operation up to +600 V

Tolerates high negative transient voltages

Unaffected by dV/dt

GATE DRIVE SUPPLY RANGE: 10 to 20V

Dual undervoltage lockout

Compatible with 3V, 5V, and 15V input logic

Prevents cross-conduction of logic

Matched propagation delays on dual channels

Lower di/dt gate driver for better noise immunity Outputs are the same as inputs Noise immunity

Outputs in phase with inputs

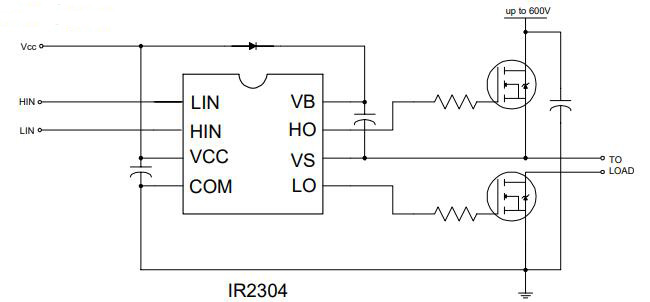

IR2304STRPBF - Block Diagram:
