[In Stock] Supply AM26LV32EIPWR (TI) Quadruple Differential Line Receiver

Shenzhen Mingjiada Electronics Co., Ltd. — In-stock supply of TI (AM26LV32EIPWR) four-channel differential line receiver. Product details are as follows:

The AM26LV32EIPWR is a four-channel differential line receiver with three-state outputs. It is specifically designed to meet the requirements of the TIA/EIA-422-B and ITU Recommendation V.11 standards, particularly suitable for systems using reduced power supply voltages. The AM26LV32EIPWR optimises balanced bus transmission at switch rates up to 32MHz, and its three-state outputs allow direct connection to bus-structured systems.

Product Information:

Model: AM26LV32EIPWR

Package: TSSOP-16

Type: Four-channel differential line receiver

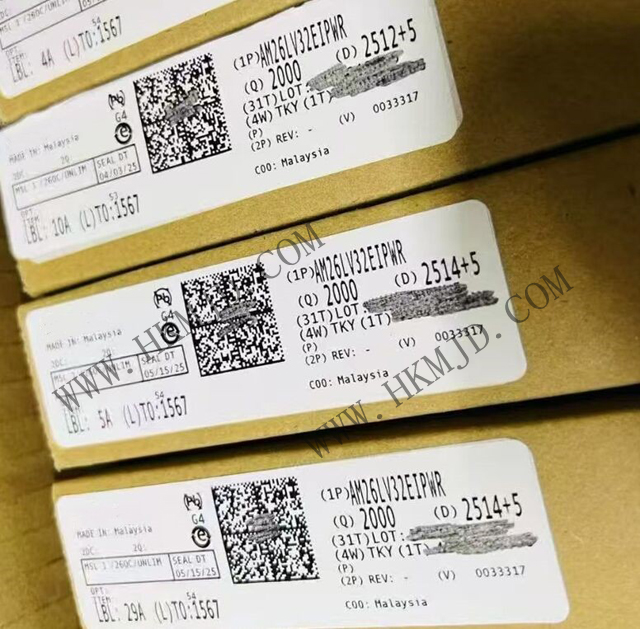

AM26LV32EIPWR Product Image:

The AM26LV32EIPWR integrates a failure protection circuit that ensures the receiver output remains in a known high-level state when the input is open-circuited, short-circuited, or in a terminal fault condition, preventing the output of unknown voltage signals and enhancing system reliability. Additionally, it supports local power-down applications using the Ioff circuit, which disables the output when the device is powered down to prevent harmful current backflow from damaging the device.

AM26LV32EIPWR Key Specifications:

Power Supply Voltage: Operating voltage range is 3V to 3.6V, using a single power supply.

Power Consumption: Typical power consumption is low, approximately 27mW, helping to reduce overall system power consumption.

Data Transfer Rate: Supports data transfer rates up to 32Mbps, suitable for high-speed communication requirements.

Number of Receivers: Integrates 4 independent differential receivers.

Common-Mode Input Voltage Range: ±7V, enabling stable operation in environments with high common-mode noise.

Input Sensitivity: ±200mV, ensuring reliable detection of differential signals.

Input Hysteresis: Typical value of 35mV, providing excellent noise immunity.

Operating Temperature Range: -40°C to 85°C, suitable for various harsh operating environments.

ESD protection: Provides robust ESD protection capabilities:

±15 kV Human Body Model (HBM)

±8 kV IEC 61000-4-2 contact discharge

±15 kV IEC 61000-4-2 air gap discharge

The AM26LV32EIPWR is ideal for applications requiring high-speed differential signal transmission and strong interference resistance:

High-reliability automotive applications

Configuration control and printing support

ATM and currency counters

Smart grids

AC and servo motor drives

[Mingjiada Electronics] has been supplying AM26LV32EIPWR for the long term. For more information about the AM26LV32EIPWR receiver or to inquire about pricing, please contact Mingjiada Electronics:
