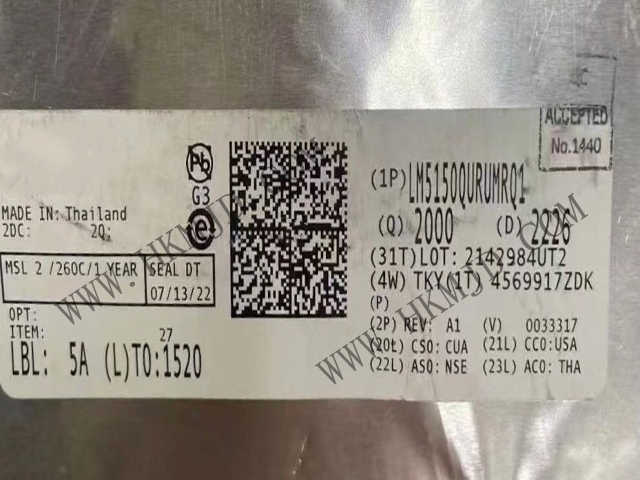

Mingjiada Electronics stock this Texas Instruments (TI) LM5150QURUMRQ1, a car-grade boost controller designed for harsh environments with a wide input voltage range and low quiescent current (IQ). It is ideal for automotive electronic systems requiring stable voltage.

Below is an overview of its key features:

Product Model: LM5150QURUMRQ1

Manufacturer: Texas Instruments (TI)

Product Description: A boost controller with a wide input voltage range of 1.5V to 42V and low quiescent current (IQ), compliant with the AEC-Q100 automotive-grade standard

Key Features: Wide input voltage range (1.5V–42V), low shutdown current (IQ ≤ 5µA), low standby current (IQ ≤ 15µA), adjustable switching frequency (220kHz–2.3MHz)

Output Options: Four programmable output voltages: 6.8V, 7.5V, 8.5V, or 10.5V

Control Features: Current limit, enable, frequency control

Package: 16-pin WQFN (4x4)

Operating Temperature: -40°C to 150°C (TJ)

Certifications: AEC-Q100 automotive-grade certification

Main applications: Automotive start-stop systems, automotive emergency call systems (eCall), battery-powered boost converters

Learn more about the specifications

Wide input voltage range (1.5V to 42V): This means it can maintain stable operation under common voltage fluctuations in automotive power systems, such as cold starts or sudden load drops.

Low static current (off-current IQ ≤ 5µA, standby current IQ ≤ 15µA): This is critical for reducing battery power consumption after the vehicle is turned off, helping to extend battery life.

Programmable output: Four fixed output voltage options (6.8V, 7.5V, 8.5V, or 10.5V) and two configuration modes (start-stop or emergency call) can be set using a single resistor.

Adjustable switching frequency (220kHz to 2.3MHz): A higher switching frequency (≥2.2MHz) helps reduce interference with the AM frequency band and allows the use of smaller external components, saving PCB space.

Comprehensive protection features: Includes adjustable cycle-by-cycle current limiting and thermal shutdown protection, enhancing system reliability and safety.

Compliant with AEC-Q100 standards: Certified through stress testing established by the Automotive Electronics Council, meeting the automotive industry's stringent quality requirements for components.

The LM5150QURUMRQ1 is ideal for the following automotive electronic applications:

Automotive start-stop systems: Ensures stable supply voltage during engine automatic start-stop operations, preventing system reset or malfunction.

Automotive emergency call systems (eCall): Provides stable power from a backup battery even if the main battery supply is interrupted, ensuring the emergency call system functions normally during accidents.

Battery-powered boost converters: Suitable for other applications requiring a wide input voltage range and high-efficiency boost solutions.

Typical application circuit

Shenzhen Mingjiada Electronics Co., Ltd. as a leading global supplier of electronic components, offers the Texas Instruments LM5150QURUMRQ1 chip in stock. The company provides fast delivery services to ensure customers can obtain the required chips promptly.
