Supply ADI ADXL377BCPZ Low Power 3-Axis Accelerometer, Supply Sensor IC

Supply ADI ADXL377BCPZ Low Power 3-Axis Accelerometer, Supply Sensor IC

Source:our siteTime:2025-07-04Views:

Supply ADI ADXL377BCPZ Low Power 3-Axis Accelerometer, Supply Sensor ICShenzhen Mingjiada Electronics Co., Ltd.——Long term supply of ADI (ADXL377BCPZ) 3-axis, high g analogue MEMS accelerometer.Product Details: The ADXL377BCPZ is an analogue, three…

Supply ADI ADXL377BCPZ Low Power 3-Axis Accelerometer,  Supply Sensor IC


Shenzhen Mingjiada Electronics Co., Ltd.——Long term supply of ADI (ADXL377BCPZ) 3-axis, high g analogue MEMS accelerometer.


Product Details:

The ADXL377BCPZ is an analogue, three-axis, high-g MEMS accelerometer that provides a signal-conditioned voltage output with a full-scale acceleration measurement range of ±200 g (min). The device is designed to measure dynamic acceleration due to high impact events without sensor saturation.

Model No.: ADXL377BCPZ

Package: LFCSP-16

Type: MEMS accelerometer

ADXL377BCPZ Product Diagram:

ADXL377BCPZ 老.jpg


ADXL377BCPZ Specifications:

Axes: X, Y, Z

Acceleration Range: ±200g

Sensitivity (mV/g): 6.5

Bandwidth: 0.5Hz ~ 1.3kHz (X, Y), 0.5Hz ~ 1kHz (Z)

Output Type: Analogue Voltage

Voltage - Supplied: 1.8V ~ 3.6V

Characteristics: Adjustable Bandwidth

Operating Temperature: -40°C ~ 85°C

Mounting Type: Surface Mount

Package/Housing: 16-LFQFN Unpadded Pad, CSP

Supplier Device Package: 16-LFCSP-LQ (3x3)

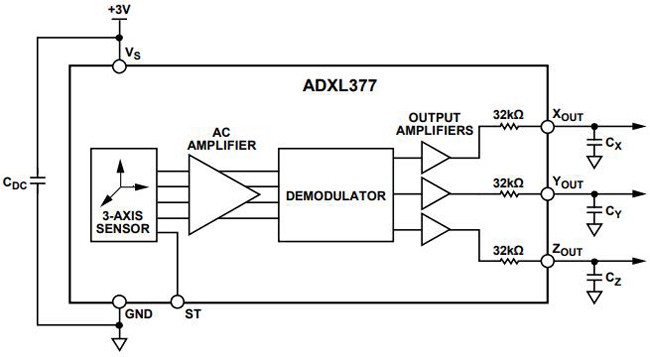

ADXL377BCPZ - Functional Block Diagram



【Mingjiada Electronics】Long-term supply of ADI (ADXL377BCPZ) 3-axis, high g MEMS accelerometers, for more information about ADXL377BCPZ products, welcome to contact Mingjiada Electronics:

QQ：1668527835

Tel：13410018555

E-mail：chen13410018555@163.com

Home URL: www.hkmjd.com
