[TI 16-Bit Microcontroller] MSP430F5528IRGCR: 25 MHz, 128KB Flash, 8KB SRAM (MCU)
The MSP430F5528IRGCR is an ultra-low power microcontroller launched by (TI), belonging to the MSP430F552x series. It is mainly targeted at application scenarios with strict power consumption requirements, such as portable devices. The following are it…
The MSP430F5528IRGCR is an ultra-low power microcontroller launched by (TI), belonging to the MSP430F552x series. It is mainly targeted at application scenarios with strict power consumption requirements, such as portable devices. The following are its core features:
• Low power supply voltage range: from 3.6V to 1.8V
Ultra-low power consumption
- Activation Mode (AM) :
- All system clocks activated:
At -8 MHz, it is 290µA/MHz, 3.0V, flash memory program execution (typical value)
At -8 MHz, 150µA/MHz, 3.0V, RAM program execution (typical value)
- Standby Mode (LPM3) :
- Crystal real-time clock (RTC), watchdog, power monitor available, full RAM retention, fast wake-up:
It is 1.9µA at -2.2V and 2.1µA at 3.0V (typical values)
-Low-power oscillator (VLO), universal counter, watchdog, power monitor available, full RAM hold, quick wake-up:
At -3.0V, it is 1.4µA (typical value)
- Off Mode (LPM4) :
- Full RAM retention, power monitor available, quick wake-up:
1.1µA at -3.0V (typical value)
- Off Mode (LPM4.5) :
0.18µA at -3.0V (typical value)
Wake up from standby mode within 3.5µs (typical value)
16-bit Reduced Instruction Set computing (RISC) architecture, extended memory, and system clock up to 25MHz
• Flexible power management system
- Built-in programmable low dropout regulator (LDO)
-Power supply voltage monitoring, surveillance and temporary power rationing
• Unified clock system
- Phase-locked loop (FLL) control loop for frequency stability
-Low-power low-frequency internal clock source (VLO)
-Low-frequency trimming internal reference source (REFO)
-32khz watch crystal oscillator (XT1)
- High-frequency crystal oscillator up to 32MHz (XT2)
A 16-bit timer TA0, Timer_A with 5 capture/comparison registers
A 16-bit timer TA1 with 3 capture/comparison registers, Timer_A
A 16-bit timer TA2, Timer_A with 3 capture/comparison registers
16-bit timers TB0 and Timer_B with 7 capture/comparison shadow registers
• Two universal serial communication interfaces
Both USCI_A0 and USCI_A1 support:
The enhanced universal asynchronous transceiver (UART) supports automatic baud rate detection
-IRDA encoding and decoding
- Synchronous Serial Peripheral Interface (SPI)
Both USCI_B0 and USCI_B1 support:
– I2C
- Synchronous Serial Peripheral Interface (SPI)
• Full-speed Universal Serial Bus (USB
-Integrated USB-Physical Layer (PHY)
- Integrated 3.3V and 1.8V USB power supply systems
- Integrated USB-phase-locked loop (PLL)
-8 input and 8 output endpoints
A 12-bit analog-to-digital converter (ADC) with internal reference, sample hold and automatic scanning functions (MSP430F552x only)
Comparator
The hardware multiplier supports 32-bit operations
Programming is done on the serial board without the need for external programming voltage
• 3-channel internal DMA
A basic timer with RTC features
The device comparison summarizes the available series of product members
Overview
The MSP430F5528IRGCR is an ultra-low power 16-bit microcontroller that can be widely applied in various applications. This architecture, when used in conjunction with multiple low-power modes, is the best choice for extending the battery life of portable measurement applications. The MSP430F5528IRGCR microcontroller features a powerful 16-bit reduced instruction set (RISC) CPU that employs 16-bit registers and a constant generator to achieve the highest encoding efficiency. This numerical control oscillator (DCO) enables the device to wake up from low-power mode to activated mode within 3.5µs (typical value).

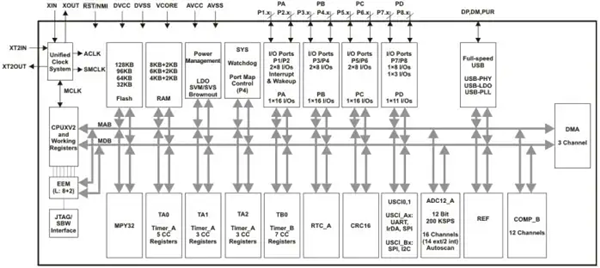

The MSP430F5528IRGCR microcontroller features an integrated USB and PHY that supports USB 2.0, 4 16-bit timers, 1 high-performance 12-bit analog-to-digital converter (ADC), 2 UScis, 1 hardware multiplier, DMA, and 1 RTC with alarm function The module and 47 I/O pins. Its typical applications include analog and digital sensor systems that need to be connected to various USB hosts, data loggers and other applications.
The application scope of MSP430F5528IRGCR includes:
• Analog and digital sensor systems
• Data logger
• Connect to a USB host
In addition, the MSP430F5528IRGCR also has the following technical parameters:
Core processor: MSP430 CPUXV2
Kernel specification: 16 bits
Speed: 25MHz
Connection capabilities: I2C, IrDA, LINbus, SCI, SPI, UART/USART, USB
Peripherals: Undervoltage detection/reset, DMA, POR, PWM, WDT
I/O number: 47
Program storage capacity: 128KB (128K x 8)
Program memory type: Flash memory
EEPROM capacity: -
RAM size: 10K x 8
Voltage - Power supply (Vcc/Vdd) : 1.8V to 3.6V
Data converter: A/D 12x12b
Oscillator type: Internal
Operating temperature: -40°C to 85°C (TA)
Installation type: Surface mount type
Supplier device packaging: 64-VQFN (9x9)
Welcome to visit the official website of Mingjiada (www.hkmjd.com) to get the exclusive product quotation of MSP430F5528IRGCR!
