Supply [TI Original Chips] ISO7220CDR Dual-Channel Digital Isolator

Supply [TI Original Chips] ISO7220CDR Dual-Channel Digital Isolator

Source:our siteTime:2025-07-01Views:

Supply [TI Original Chips] ISO7220CDR Dual-Channel Digital IsolatorShenzhen Mingjiada Electronics Co., Ltd.——Long term supply TI (ISO7220CDR) 25Mbps, Dual Channel Digital Isolator.Product Details: Model: ISO7220CDR Package: SOIC-8 Type: Digital Isol…

Supply [TI Original Chips] ISO7220CDR Dual-Channel Digital Isolator


Shenzhen Mingjiada Electronics Co., Ltd.——Long term supply TI (ISO7220CDR) 25Mbps, Dual Channel Digital Isolator.


Product Details:

Model: ISO7220CDR

Package: SOIC-8

Type: Digital Isolator

Isolation Voltage: 2500 Vrms (UL 1577) / 4242 Vpk (VDE 0884-10)

Supply Voltage (Each Side): 2.25V - 5.5V (Both Sides Can Vary)

CMTI: > 25 kV/μs (Typical)

Operating Temperature: -40°C to +125°C

ISO7220CDR product diagram:

ISO7220CDR 老.jpg

The ISO7220CDR is TI's capacitive isolation-based dual-channel digital isolator, optimised for applications requiring signal isolation and level shifting in high-noise industrial environments. The ISO7220CDR replaces traditional optocouplers and dramatically improves system performance by integrating two independent isolation channels for signals at high isolation voltages of up to 2500 Vrms, while providing low latency, high immunity to interference, and wide voltage compatibility. The ISO7220CDR replaces conventional optocouplers and significantly improves system reliability.


ISO7220CDR Product Features:

1Mbps, 5Mbps, 25Mbps, and 150Mbps Signalling Rate Options

- Low channel output skew; 1ns maximum

- Low Pulse Width Distortion (PWD); 1ns maximum

- Low jitter content; Typical at 150Mbps. Low jitter content; 1ns typical at 150Mbps

50kV/μs typical transient immunity

Powered by 2.8V (Class C), 3.3V, or 5V supply

4kV ESD protection

High electromagnetic immunity

Operating temperature range -40°C to +125°C

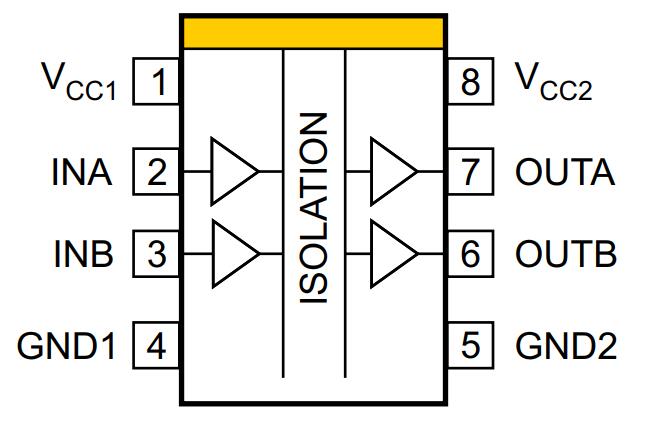

ISO7220CDR Package 8-pin SOIC (top view)



TI (ISO7220CDR) dual-channel digital isolators with logic input and output buffers block high voltages and isolate grounds, and prevent noise currents on data buses or other circuits from going to local ground or causing interference or damage to sensitive circuits.


Mingjiada Electronics has been supplying [ISO7220CDR] for a long time, if you need more information about ISO7220CDR or consulting price, welcome to contact Mingjiada Electronics:

QQ:1668527835

Tel:13410018555

E-mail:chen13410018555@163.com

Home URL:www.hkmjd.com
