The MAX17509ATJ is a 4.5V to 16V, dual-channel 3A output, high-efficiency, synchronous step-down DC-DC converter with resistance programming function. It features the following main characteristics:

Reduce the inventory list of DC-DC regulators

Output voltage (0.904V to 3.782V and 4.756V to 5.048V, with a resolution of 20mV)

It can be configured as two independent outputs (3A/3A) or two single-phase outputs (6A)

Reduce noise and EMI

The switching frequency can be adjusted, and 0/180° phase shift can be selected

External frequency synchronization

Adjustable switch swing rate

Complies with EN55022 (CISPR22) Class B radiation and conductive EMI standards

Convenient for system design

All-ceramic capacitor solution

Automatically configure internal compensation

You can choose either burping or brick wall mode

The soft start rise/fall time is adjustable, featuring a soft stop mode and pre-offset start

Operating temperature range: -40°C to +125°C

Reliable work

Reliable fault protection (VIN_UVLO, UV/OV, UC/OC, OT)

Power supply ready

Overview

The MAX17509ATJ integrates two 3A internal switching step-down regulators with programmable features. The MAX17509ATJ can be configured as either two independent single-phase 3A power supplies or a single two-phase output 6A power supply. The MAX17509ATJ operates with an input of 4.5V to 16V, generating independently adjustable output voltages ranging from 0.904V to 3.782V and 4.756V to 5.048V, with a system accuracy of ±2%.

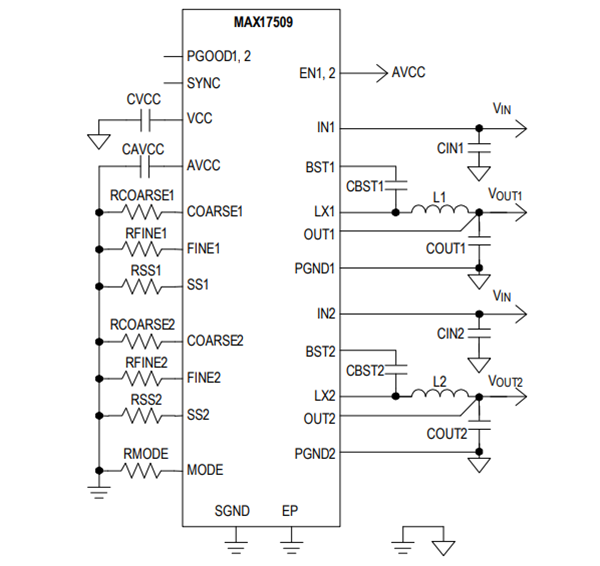

The MAX17509ATJ enables the selection of multiple programmable options by connecting resistors to configuration pins, thereby providing maximum flexibility for end users. The two main highlights of the MAX17509ATJ are the ability to self-configure compensation for any output voltage and set the LX switch node slew rate to reduce noise. In noise-sensitive applications, such as high-speed gigabit transceivers in FPgas, RF and audio, this unique slew rate control benefits. The MAX17509ATJ provides a SYNC input for synchronizing multiple devices with the system clock.

The MAX17509ATJ offers output overvoltage (OV) and undervoltage (UV) protection, as well as overcurrent (OC) and undercurrent (UC) protection, with an optional hiccup/lock option. The MAX17509ATJ operates within a temperature range of -40°C to +125°C and features temperature detection and shut-off functions for overheat (OT) protection. This device is packaged in a 32-pin 5mm x 5mm TQFN.

Basic information

Product: MAX17509ATJ

Function: Lower blood pressure

Output configuration: positive

Topology: Voltage reduction

Output type: Adjustable

Output number: 2

Voltage - Input (minimum value) : 4.5V

Voltage - Input (maximum value) : 16V

Voltage - Output (minimum value/fixed) : 0.904V, 4.756V

Voltage - Output (maximum value) : 3.782V, 5.048V

Current - output: 3A

Frequency - switching: 500kHz, 1MHz, 1.5MHz, 2MHz

Synchronous rectifier: None

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Package/Housing: 32-WFQFN

Typical applications

The MAX17509ATJ is suitable for a variety of power management applications, including but not limited to:

Base station load point voltage stabilizer

Core power supplies for FPGA and DSP

Industrial control equipment

Multi-load point (POL) power supply
