The MAX16972AGEB is an automotive-grade high-speed USB protector with a charging capability of 3A and supports Apple iPhone/iPad and USB 2.0 charging specifications.

The MAX16972AGEB has the following functions:

Equipped with the industry-leading RDS(ON), it minimizes the bus voltage drop to the greatest extent and helps the device connectors meet the USB voltage specification

31mΩ(typical value) current-limiting BUS switch, capable of driving large capacitor loads

Support reliable overvoltage and ESD protection for automotive application environments, saving external protection components

The HVBUS output provides protection against battery short circuits and ground short circuits

The HVD+ and HVD- outputs provide protection against battery short circuits and HVBUS short circuits

Two 4.0Ω (typical value) RON USB 2.0 data switches

Integrate the automatic retry function for overcurrent and short circuit

High ESD protection (HVD+, HVD-, HVBUS)

±15kV human body mode

±15kV IEC 61000-4-2 air gap discharge

±8kV IEC 61000-4-2 contact discharge

20ms fault shielding timeout period

The charging mode is automatically converted through the intelligent state machine, supporting seamless integration of devices

Integrate the dedicated charging mode for Apple iPhone 1.0A

Integrated with the dedicated charging mode for Apple iPad 2.1A

USB-IF BC1.2 Charging Downlink Port (CDP) and Dedicated Charging Interface (DCP) mode

Chinese communication industry standard YD/T 1591-209

Support USB OTG

Ec-q100 certification

Product Details

The MAX16972AGEB can provide extremely high ESD protection and short-circuit protection for internal low-voltage USB data cables and USB power cables, making it ideal for applications such as in-vehicle radios, navigation, connected products, and USB hubs. The MAX16972AGEB device supports high-speed USB (480Mbps) and full-speed USB (12Mbps) operations. Furthermore, the MAX16972AGEB is also integrated with the circuit for fast charging of consumer electronic devices, supporting the Apple method or the high-speed USB host charger port detection protocol, and supporting USB OTG.

The short-circuit protection functions include: short-circuit protection for the battery with HVBUS, HVD+ and HVD- outputs, as well as short-circuit protection for HVBUS with HVD+ and HVD- outputs. The MAX16972AGEB allows for short circuits to battery voltages up to +18V. The short-circuit protection to ground and overcurrent protection at the HVBUS output terminal can effectively protect the internal BUS power supply from the influence of overcurrent faults.

The MAX16972AGEB provides high ESD protection (±15kV air-gap discharge and ±8kV contact discharge) at all output protection pins (HVBUS, HVD+ and HVD-).

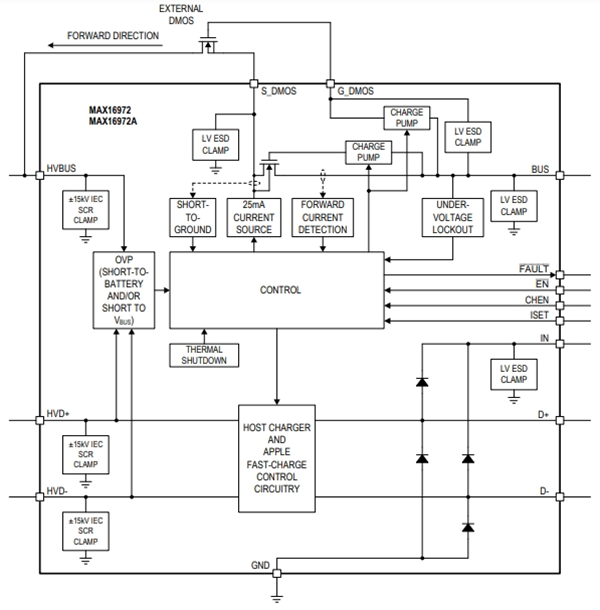

The MAX16972AGEB features two 4.0Ω low-on-resistance channels, a high-speed USB switch, and one 31mΩ low-voltage current-limiting BUS switch, and integrates an external high-voltage power switch controller. The BUS switch can start large-capacity loads that do not comply with the USB specification. The MAX16972AGEB also features enable input, fault indication output, an integrated Apple iPhone®/iPad® fast charging terminal resistor, and an integrated host charger port detection circuit, supporting USB 2.0 battery charging specification version 1.2.

In addition, the MAX16972AGEB is suitable for USB interface protection and charging management in automotive electronic systems, including:

Vehicle-mounted networking

Vehicle-mounted radio and navigation

Telematics

USB hub
