Available (ADI) ADPL62083UR44Q: 3-Lead SOT-23 Low Power Supervisory Circuit (1.02 V to 4.8 V)

Available (ADI) ADPL62083UR44Q: 3-Lead SOT-23 Low Power Supervisory Circuit (1.02 V to 4.8 V)

Source:our siteTime:2025-06-05Views:

Analog Devices Inc. ADPL62083UR44Q: 3-pin SOT-23 low-power monitoring circuitExplanationThe ADPL62083UR44Q is a monitoring circuit that uses factory-set reset thresholds to monitor voltages ranging from 1.02V to 4.8V.The ADPL62083UR44Q features open-l…

Analog Devices Inc. ADPL62083UR44Q: 3-pin SOT-23 low-power monitoring circuit


Explanation

The ADPL62083UR44Q is a monitoring circuit that uses factory-set reset thresholds to monitor voltages ranging from 1.02V to 4.8V.

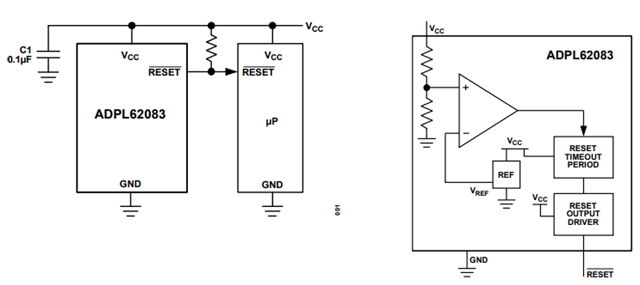

The ADPL62083UR44Q features open-leakage and low-level effective reset output. When the monitoring voltage exceeds its threshold, the reset output will be set and remain set during the reset timeout period.

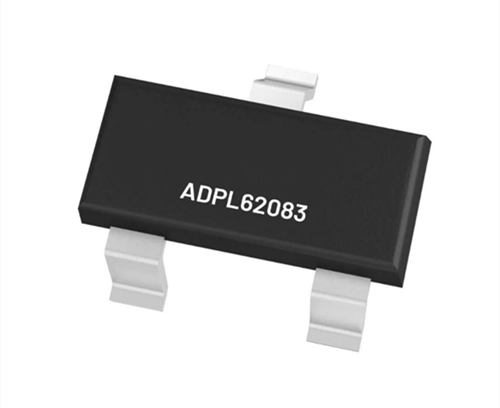

The ADPL62083UR44Q adopts a 3-lead SOT23 package. Its operating temperature range is from -40°C to +125°C.


Its main features include:

Low power supply current: 5μA (typical value), 6.8μA (maximum value) at 3.6V over-temperature (+125°C)

The factory sets the reset threshold option from 1.02V to 4.8V, with an increment of 50mV/100mV

Ensure that the reset is effective until VCC ≥ 1V

Open leakage reset output

Power transient immunity

The operating temperature range is from -40 °C to +125°C

With these features, the ADPL62083UR44Q is well-suited for a wide range of circuit designs that require high precision, low noise, and high-speed performance, such as precision instruments, medical devices, industrial control, and communication systems, ‌.


Basic parameters

Model: ADPL62083UR44Q

Type: Simple Reset/Power-on reset

Monitored voltage number: 1

Voltage - threshold: 4.38V

Output: Open-circuit drain or open-circuit collector

Reset: Low effective

Reset timeout: Typical value of 300ms

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Package/Shell: SOT-23-3


Consult Mingjiada Electronics (www.hkmjd.com) for an exclusive quotation for ADPL62083UR44Q.
