Mingjiada Electronics, as a globally renowned authorised independent distributor of electronic components, stocks the NXP MKV42F128VLF16 high-performance motor control and power conversion microcontroller (MCU).

Key specifications of the MKV42F128VLF16:

Manufacturer/Model: NXP / MKV42F128VLF16

Product Category: 32-bit Microcontroller (MCU)

Core: ARM® Cortex®-M4 (with DSP and Floating-Point Unit FPU)

Maximum Clock Frequency: 168MHz

Flash Memory: 128KB

RAM: 24KB

Package: 48-LQFP (7x7mm)

Operating Voltage: 1.71V to 3.6V

Operating Temperature: -40°C to 105°C (TA)

ADC: 2x 12-bit, 16 channels, 4.1 MSPS, conversion time 240ns

PWM: eFlexPWM (resolution up to 312ps), up to 30 PWM channels

Communication interfaces: CANbus (dual FlexCAN), I2C, SPI, UART/USART

Other peripherals: DMA, LVD, POR, WDT, programmable delay block

Overview

The Kinetis® KV4x series MCUs represent a high-performance solution delivering exceptional precision, sensing and control capabilities for demanding applications within motor and power control domains. Based on the Arm® Cortex®-M4 core operating at 168MHz with DSP and floating-point units, it incorporates advanced high-speed, high-precision peripherals such as 312-ps high-resolution pulse width modulation (PWM), dual 12-bit analogue-to-digital converters (ADCs) with a sampling rate of 4.1 megasamples per second (MSPS), a total of 30 PWM channels supporting multi-motor systems, and dual FlexCAN modules. A 128-bit wide flash interface comprehensively enhances execution performance.

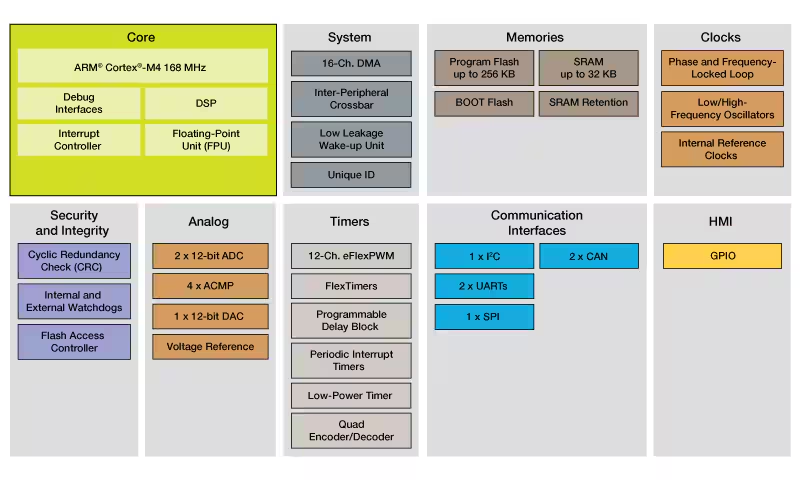

Kinetis® V Series KV4x Microcontroller Block Diagram

Features

168 MHz Cortex-M4 core with DSP and floating-point unit – significantly enhances performance for computationally intensive applications such as processing sensorless field-oriented control (FOC) algorithms

128-bit wide flash memory with cache connection, minimising wait states while executing fast control loops

Two 12-bit, 16-channel ADCs with PGA – 4.1 MSPS, ideal for digital power conversion or motor control applications

Up to 12 channels of eFlexPWM - up to 312ps resolution for demanding digital power conversion applications

Two 8-channel and one dual-channel programmable FlexTimers - highly accurate PWM generation with integrated power factor correction or speed sensor decoding (incremental encoder/Hall sensor)

Quadrature encoder/decoder

Up to two FlexCAN modules – high-speed, highly reliable industrial communication

Extensive and scalable product line offering excellent hardware and software compatibility – supports easy migration to leverage the enhanced performance, memory, and features of Kinetis® V series devices

Supply Advantages from Mingjiada Electronics

Genuine Products: All MKV42F128VLF16 units supplied by Mingjiada Electronics are manufactured by NXP Semiconductors, ensuring product quality and performance.

Stock Availability: Ample inventory to meet immediate procurement needs and shorten project development cycles.

Flexible Transactions: Multiple transaction options available, including small-batch trials and bulk purchases, to accommodate diverse customer requirements.

For further details regarding the NXP MKV42F128VLF16 microcontroller or procurement information, please do not hesitate to contact us.
