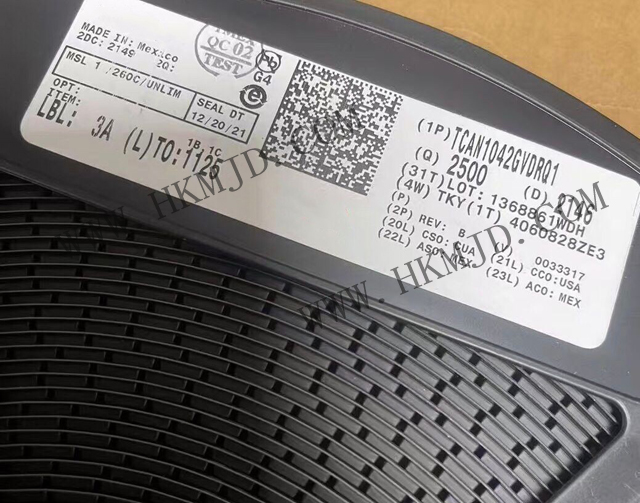

Mingjiada Electronics supplies the TCAN1042GVDRQ1, a automotive-grade fault-tolerant CAN FD transceiver with I/O level conversion and a flexible data rate of 5 Mbps, designed by Texas Instruments (TI) specifically for high-reliability automotive electronic systems.

1. Product Overview

Model: TCAN1042GVDRQ1

Manufacturer: Texas Instruments (TI)

Package: SOIC-8 (surface mount)

Compliance Standards: ISO 11898-2:2016 (high-speed CAN), AEC-Q100 Grade 1 (automotive-grade certification)

Key Features: Supports CAN FD (flexible data rate) with a maximum communication rate of 5Mbps and fault protection functionality.

2. Key Features

High-speed communication: Supports traditional CAN (1 Mbps) and CAN FD (up to 5 Mbps), suitable for modern in-vehicle network requirements.

Wide voltage range: Logic interface supports 3.3V/5V MCUs, bus supply voltage range 4.5V to 5.5V.

High reliability protection:

Bus fault protection: ±58V (non-H type) or ±70V (H type).

ESD protection: up to ±15kV (IEC standard).

Undervoltage protection (UVLO) and thermal shutdown (TSD).

Low-power mode: static current as low as 5μA in standby mode, suitable for energy-efficient automotive electronic systems.

3. Typical Applications

Body Control Module (BCM)

Battery Management System (BMS) for New Energy Vehicles

Advanced Driver Assistance Systems (ADAS)

On-Board Diagnostics (OBD) Interface

Industrial CAN Networks (e.g., ISO 11783 Agricultural Machinery)
