[Supply] AD9864BCPZRL (ADI) IF Receivers——Low Power IF Digitizing Subsystem

Shenzhen Mingjiada Electronics Co., Ltd.——Long-term supply of ADI (AD9864BCPZRL) general-purpose IF digitisation subsystems, which can digitise low-level 10 MHz to 300 MHz IF inputs with signal bandwidths ranging from 6.8 kHz to 270 kHz.

Product Details:

The AD9864BCPZRL is a general-purpose IF subsystem in a 48-pin LFCSP package that is powered from a single 2.7 V to 3.6 V supply. Total power consumption is 56 mW typical, and a power-saving mode is available via a serial interface.The signal chain of the AD9864BCPZRL includes a low-noise amplifier (LNA), a mixer, a bandpass sigma-delta type analogue-to-digital converter (ADC), and an extraction filter with a programmable extraction factor. An automatic gain control (AGC) circuit provides 12 dB of continuous gain adjustment. Auxiliary modules include a clock and LO frequency synthesiser.

Model No.: AD9864BCPZRL

Package: LFCSP-48

Type: IF Transceiver - IF Digitisation Subsystem

AD9864BCPZRL product diagram:

AD9864BCPZRL Product Features:

Input frequency: 10MHz to 300MHz

Composite output signal bandwidth: 6.8kHz to 270kHz

Single-sideband noise figure (SSB NF): 7.5 dB

Input third-order intermodulation intercept (IIP3): -7.0 dBm

No AGC range up to -34 dBm

Continuous AGC range: 12 dB

Front-end attenuator: 16 dB

Baseband I/Q 16-bit (or 24-bit) serial digital outputs

LO and sample clock frequency synthesiser

Programmable extraction factor, output format, AGC and frequency synthesizer settings

370 Ω input impedance

Supply voltage: 2.7 V to 3.6 V

Low power consumption: 17 mA

48-pin LFCSP package

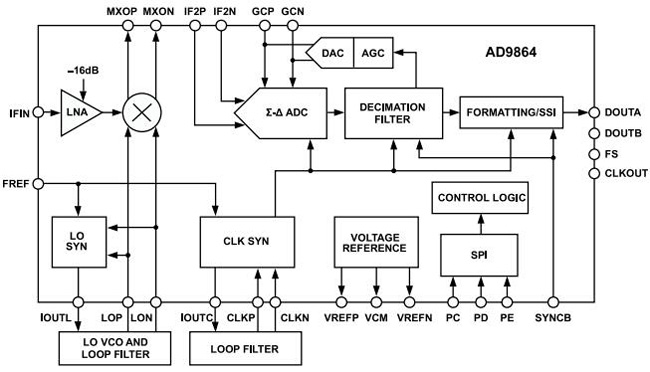

AD9864BCPZRL functional block diagram:

[Mingjiada Electronics] is a long term supplier of ADI (AD9864BCPZRL) IF Transceiver - IF Digitising Subsystem, for more information about AD9864BCPZRL products or to purchase samples, please contact Mingjiada Electronics.
