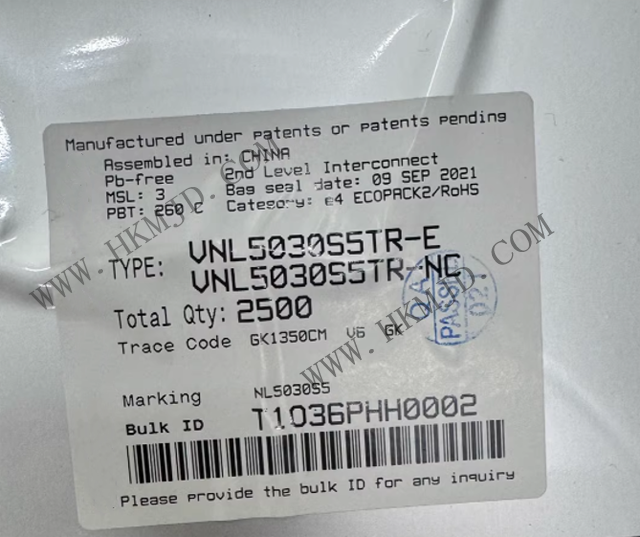

VNL5030S5TR Product Description and Mingjiada Supply Information

1. Product Overview

The VNL5030S5TR is an OMNIFET III fully protected low-side driver developed by STMicroelectronics, manufactured using VIPower® technology, designed for driving resistive or inductive loads connected to a battery. This chip is widely used in automotive electronics applications such as body control, lighting systems, and motor drives, offering high reliability, low power consumption, and comprehensive protection features.

2. Key Features

Output Current: 25A (maximum)

Operating Voltage: 3.5V to 5.5V (supply), 36V (load)

On-Resistance: 30mΩ (typical)

Protection Features:

Thermal Shutdown (prevents overheating damage)

Current Limit (overload protection)

ESD Protection (enhanced static discharge resistance)

Overvoltage clamping (prevents voltage spikes)

Low standby current: optimises power consumption and extends battery life

Compliant with automotive standards (AEC-Q100 certified)

Package: SOIC-8 (surface mount).

3. Typical Applications

Automotive body electronics (window control, seat adjustment, wiper drive)

Automotive lighting systems (LED headlights, tail light drivers)

Motor drives (electric power steering EPS, air conditioning compressor control)

Industrial automation (relay drives, power management).

Mingjiada Electronics Supply Information

Shenzhen Mingjiada Electronics Co., Ltd. is a long-term supplier of the VNL5030S5TR, offering brand-new, genuine stock with ample inventory and support for rapid delivery.

Contact Information

For inquiries regarding the purchase of VNL5030S5TR, please contact Mingjiada Electronics:

Contact Person: Mr. Chen

Phone: +86 13410018555

Email: sales@hkmjd.com

Company Address: Room 1239-1241, Xinyazhou Guoli Building, Zhenzhong Road, Futian District, Shenzhen City.
