Mingjiada Electronics [Supply] TPS628501QDRLRQ1 (TI) Automotive Step-Down Converter

Shenzhen Mingjiada Electronics Co., Ltd.——Long-term supply of TI (TPS628501QDRLRQ1) 1A, high efficiency synchronous DC/DC buck converter

TI TPS628501QDRLRQ1: High Efficiency Power Solutions for Automotive Electronics - 1A Buck Converter Optimised for ADAS and Infotainment Systems

Product Details:

Model: TPS628501QDRLRQ1

Package: SOT-583

Type: Automotive Buck Converter

Overview:

The TPS628501QDRLRQ1 is a pin-to-pin 1A, easy-to-use, high-efficiency synchronous DC/DC buck converter based on a peak current-mode control topology designed for automotive applications such as infotainment systems and advanced driver assistance systems.The switching frequency of the TPS628501QDRLRQ1 is externally adjustable from 1.8 MHz to 4 MHz. The device can also be synchronised with an external clock in the same frequency range. In PWM/PFM mode, the device automatically enters power save mode at light loads to maintain high efficiency throughout the load range.

TPS628501QDRLRQ1 Specifications:

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable

Number of outputs: 1

Voltage - Input (Min): 2.7V

Voltage - Input (Max): 6V

Voltage - Output (Min/Fixed): 0.6V

Voltage - Output (Max): 5.5V

Current - Output: 1A

Frequency - Switch: 1.8MHz ~ 4MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

Package/Housing: SOT-583

TPS628501QDRLRQ1 Application Areas

ADAS Camera, ADAS Sensor Fusion

Surround view ECU

Hybrid and reconfigurable instrument clusters

Audio host, telematics control unit

External amplifiers

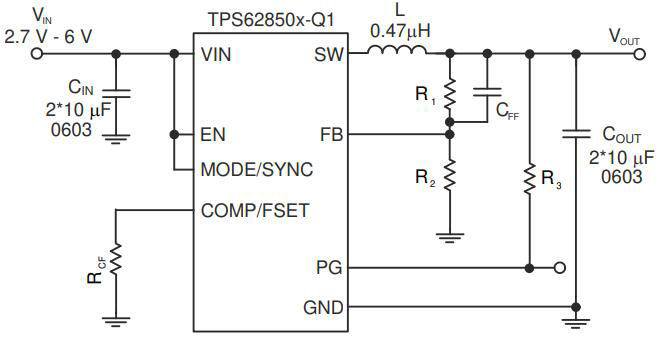

TPS628501QDRLRQ1 Simplified Schematic

For more information about the TPS628501QDRLRQ1 or to inquire about pricing, please contact Mingjiada Electronics.
