With (Q)SGMII and MACsec VSC8562XKS-14, VSC8562XKS-11 Dual-Port 10/100/1000BASE-T PHY

With (Q)SGMII and MACsec VSC8562XKS-14, VSC8562XKS-11 Dual-Port 10/100/1000BASE-T PHY

Source:our siteTime:2024-03-15Views:

Shenzhen Mingjiada Electronics Co., Ltd. Introduces Microchip VSC8562XKS-14, VSC8562XKS-11 Dual-Port 10/100/1000BASE-T PHYs with Synchronous Ethernet, Intellisec™, and QSGMII/SGMII MACs in New and Original FormatVSC8562XKS-14, VSC8562XKS-11 Device Ov…

Shenzhen Mingjiada Electronics Co., Ltd. Introduces Microchip VSC8562XKS-14, VSC8562XKS-11 Dual-Port 10/100/1000BASE-T PHYs with Synchronous Ethernet, Intellisec™, and QSGMII/SGMII MACs in New and Original Format


VSC8562XKS-14, VSC8562XKS-11 Device Overview:

The VSC8562 is a low-power, dual-port Gigabit Ethernet transceiver with two SerDes interfaces for dual-port, dual-media functionality. It also includes an integrated dual-port, two-wire serial multiplexer (MUX) for controlling SFP or PoE modules. It features low electromagnetic interference (EMI) line drivers and integrated line-side termination resistors to save power and printed circuit board (PCB) space.


The VSC8562 device includes Intellisec™, Microsemi's implementation of the IEEE 802.1AE 128/256-bit MACsec protocol, which meets the requirements for securing Ethernet LAN data. It features input classification, frame encryption/decryption, performance and latency monitoring.


The VSC8562 also supports ring resiliency, which allows 1000BASE-T connected PHY ports to switch between master and slave timings without interrupting the 1000BASE-T link.


The VSC8562 uses Microsemi's EcoEthernet v2.0 PHY technology, which supports power-saving features such as Energy Efficient Ethernet (EEE), ActiPHY link down power saving, and PerfectReach, which adjusts power based on cable length. It also supports fully optimised power consumption at all link speeds.

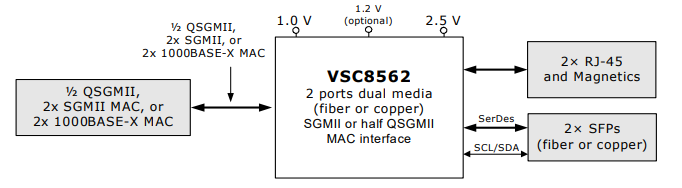

1 - Dual Media Application Schematic

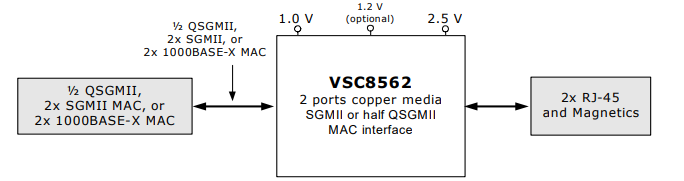

2 - Copper Transceiver Application Schematic

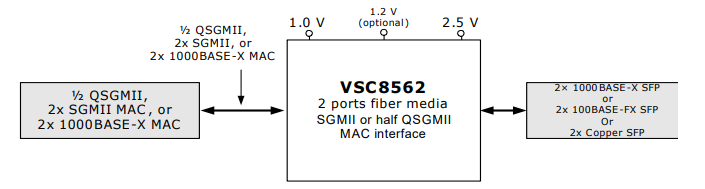

3 - Fibre Media Transceiver Application Schematic



If you are interested, please contact Mr Chen by phone:

Tel: +86 13410018555

Email: sales@hkmjd.com

Company Home：www.hkmjd.com
