Shenzhen Mingjiada Electronics Co., Ltd. sold and recycled [ADI] AD3541RBCPZ16 single-channel, 16-bit precision voltage output digital-to-analog converter (DAC).

Device description:

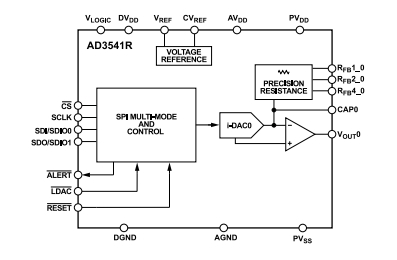

The AD3541R is a low-drift, single-channel, ultra-fast, 16-bit precision, voltage-output digital-to-analog converter (DAC) that can be configured in multiple voltage ranges. The AD3541R uses a 2.5V fixed reference voltage source. The device contains three drift compensated feedback resistors, an internal transresistance amplifier (TIA) for regulating the output voltage. The AD3541R has five pre-configured output ranges: 0 V to 2.5 V, 0 V to 5 V, 0 V to 10 V, −5 V to +5 V, and −2.5 V to +7.5 V.

The DAC can be run in fast mode for higher speed, or in precise mode for higher accuracy.

The Serial Peripheral Interface (SPI) can be configured in single-channel SPI (classic SPI) mode or dual-channel SPI mode with single data rate (SDR) or double data rate (DDR) with logic levels from 1.2V to 1.8V. To improve device robustness, cyclic redundancy check (CRC) can be enabled. Multiple error checkers are also integrated to detect VREF failures or memory mapping corruption.

Applications:

• Instrumentation

• Hardware in the ring

• Process control equipment

• Medical equipment

• Automatic test equipment

• Data acquisition system

• Programmable voltage source

• Optical communication

Features:

16-bit resolution

Rate of 16 MUPS in fast mode

Single channel rate of 11 MUPS in precise mode

The small signal establishment time is 78 ns, and the accuracy is 0.1%

The large signal establishment time is 100 ns, and the accuracy is 0.1%

Super small burr: <50 pV×s

Ultra-low latency: 5 ns

THD: The AD3541R-16 is −105 dB at 1 kHz, and the AD3541R-12 is −95 dB at 1 kHz

5 optional output voltage ranges

1.2V and 1.8V logic levels are compatible

Single band (classic), dual band SPI mode

Multiple error detectors, including analog and digital domains

2.5V internal voltage reference, 10 ppm/°C maximum temperature coefficient

Small package: 4 mm x 4 mm LFCSP
