Original IC Chips——Supply ADM2587EBRWZ (ADI) Isolated RS-485 Transceiver

Shenzhen Mingjiada Electronics Co., Ltd.——Long-term supply of ADI (ADM2587EBRWZ) integrated isolated data transceivers with ±15 kV ESD protection for high-speed communication applications on multipoint transmission lines.

Product Details:

Model: ADM2587EBRWZ

Package: SOIC-20

Type: Isolated RS-485 Transceiver

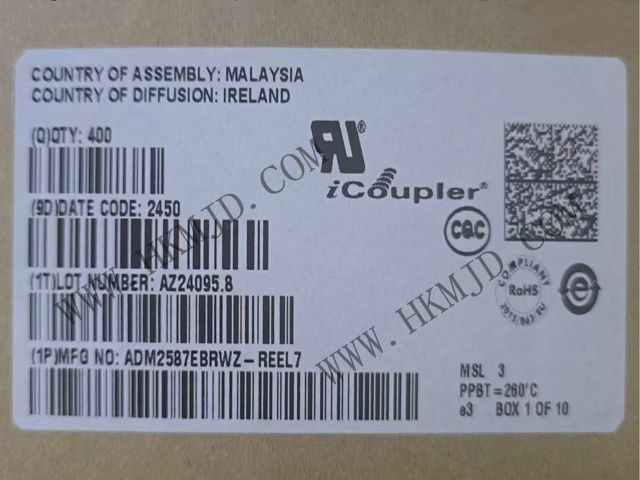

ADM2587EBRWZ Product Diagram:

The ADM2587EBRWZ contains an integrated isolated DC-DC power supply, eliminating the need for an external DC/DC isolation module. The ADM2587EBRWZ incorporates a three-channel isolator, a three-state differential line driver, a differential input receiver, and an isoPower DC/DC converter in a single package. the ADM2587EBRWZ operates from a single 5V or 3.3V power supply, enabling a fully integrated signal- and power-isolated RS-485 solution. the ADM2587EBRWZ features current-limiting The ADM2587EBRWZ features current limiting and thermal shutdown to prevent output short circuits and excessive power consumption due to bus contention. The ADM2587EBRWZ is available in a 20-pin wide-body SOIC package and is rated for industrial temperature operation.

ADM2587EBRWZ Product Features:

Isolated RS-485/RS-422 transceiver, configurable as half-duplex or full-duplex

isoPower™ Integrated Isolated DC/DC Converter

RS485 Input/Output Pins Provide ±15 kV ESD Protection

Complies with ANSI/TIA/EIA RS-485-A-98 and ISO 8482. 1987(E) standards

ADM2587E Data Rate: 500 kbps

Operating Voltage: 5 V or 3.3 V

Bus supports connections to up to 256 nodes

Open- and Short-Circuit Fault Protection for Receiver Inputs

High Common-Mode Transient Immunity: >25 kV/μs

Thermal Shutdown Protection

ADM2587EBRWZ Applications

Isolated RS-485/RS-422 Interface

Industrial Field Networks

Multi-point Data Transmission Systems

[Mingjiada Electronics] Long-term supply of ADI (ADM2587EBRWZ) 500kbps, full/half-duplex RS-485 transceiver, for more information about ADM2587EBRWZ products or to consult the price, welcome to contact Mingjiada Electronics:
