Mingjiada Electronics introduces a 6-channel logic isolator, LTM2887IY-5S: 2500VRMS (SPI interface) μModule isolator, with price advantage.

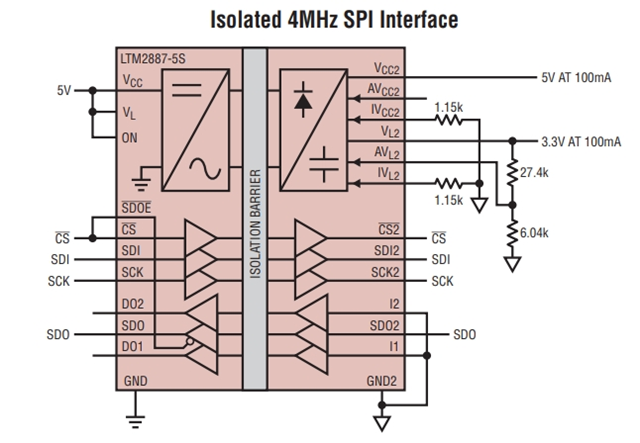

LTM2887IY-5S circuit diagram

Product description

The LTM2887IY-5S is a complete current digital µModule®(micro module) isolator. The LTM2887IY uses no external components. A single 3.3V or 5V power supply supplies both sides of the interface via an integrated isolated DC/DC converter. A logic power supply pin provides easy connections with different logic levels from 1.62V to 5.5V, independent of the main power supply.

LTM2887IY-5S available options comply with SPI specifications.

The LTM2887IY-5S isolation side includes two nominal 5V power supplies with programmable current limiting, each capable of delivering more than 100mA of load current. These power supplies can be adjusted from their nominal value with a single external resistor.

The LTM2887IY-5S is suitable for applications requiring high-speed data transmission and electrical isolation, and features include:

High-speed operation ‌ : Data rate up to 20 Mb/s

High isolation voltage ‌ : 10 kV isolation voltage

Low propagation delay ‌ : Propagation delay time of 60 ns

The LTM2887IY-5S isolator has the following main specifications and features:

6-channel Logic isolator: 2500VRMS (lasts 1 minute)

Awaiting UL-CSA Standard Approval document # E151738

Isolated DC Power supply:

1.8V to 5V logic power supply (up to 100mA)

0.6V to 5V auxiliary power supply (up to 100mA)

No external components required

SPI/Digital (LTM2887IY-5S) option

Withstand high common mode transients: 30kV/μs

High-speed operation:

10MHz digital isolation

4MHz / 8MHz SPI isolation

400kHz I2C isolation

5V operating voltage

1.62V to 5.5V (LTM2887IY-5S) logic power supply

±10kV ESD HBM is available at both ends of the isolation barrier

Max. continuous operating voltage: 560VPEAK

Low current shutdown mode (<10μA)

Flat 15mm x 11.25mm x 3.42mm BGA package

Typical application scenarios of the LTM2887IY-5S include:

Industrial communications ‌ : isolated SPI interface (e.g. PLC, motor control) ‌.

Test equipment ‌ : Ground loop isolation ‌ for high-precision instruments.

Medical system ‌ : Securely isolated data acquisition and transmission ‌.
