Shenzhen Mingjiada Electronic Recycling (ADI) ADN4655BRSZ: A 3.75kV RMS, dual-channel LVDS gigabit isolator.

Product details

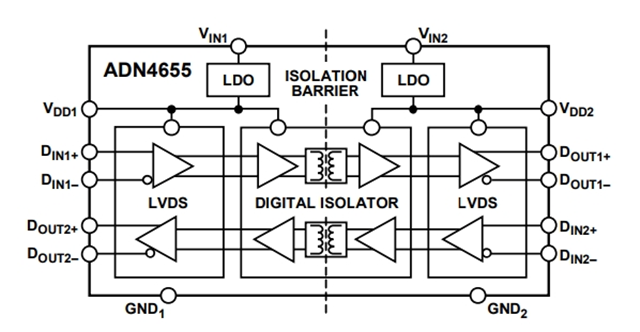

The ADN4655BRSZ is a dual channel LVDS (Low Voltage Differential Signal) isolator. It is mainly used for signal isolation, operating at speeds up to 1.1Gbps and has low jitter characteristics. The ADN4655BRSZ integrates iCoupler technology to enhance high-speed operation and provide current isolation for LVDS drivers and receivers that comply with TIA/EIA-644-A standards. With this integration, the embedded isolation of LVDS signal chain can be realized.

The ADN4655BRSZ includes a variety of channel configurations, and the LVDS receiver on the ADN4655 includes a fail-safe mechanism to ensure that the corresponding LVDS driver outputs logic if the input is suspended, short-circuited, or terminated but not driven.

For high-speed operation under low jitter conditions, LVDS and isolator circuits rely on a 2.5V power supply. The integrated on-chip Low Voltage Difference (LDO) regulator provides the required 2.5V voltage from an external 3.3V power supply. The ADN4655BRSZ is perfectly suited for use over a wide industrial temperature range in a 20-pin SSOP package with 3.75 kV rms isolation.

Product advantage

High speed low jitter ‌ : ADN4655BRSZ supports ‌1.1Gbps‌ data rate, random jitter as low as ‌2.6ps rms‌, to ensure high speed signal integrity ‌.

High anti-interference ‌ : ±8kV IEC 61000-4-2 ESD protection, high common mode transient suppression ability (>25kV/μs), suitable for complex electromagnetic environment ‌.

Safety certification ‌ : ADN4655BRSZ meets the requirements of ‌UL 1577‌ (pending) and ‌DIN V VDE V 0884-10‌ for industrial safety ‌.

Technical parameter

Product: ADN4655BRSZ

Isolation voltage ‌ : 3750 Vrms (3.75 kV RMS)

Number of channels ‌ : 2 channels

Data rate ‌ : up to 1.25 Gb/s

Propagation delay ‌ : 4 ns‌

Working power supply current ‌ : 58 mA‌

The supply voltage ranges from ‌ : 2.375V to 3.6V

Operating temperature range ‌ : -40°C to +125°C

Package format ‌ : SSOP-20

In addition, the ADN4655BRSZ is suitable for applications requiring high-speed data transmission and electrical isolation, such as:

Isolated video and imaging data

Analog front end isolation

Data plane isolation

Isolated high speed clock and data link

The ADN4655BRSZ isolator has the following main features:

3.75kV rms LVDS isolator

Meets TIA/EIA-644-A LVDS standards

Multiple dual-channel configurations

Can be switched at arbitrary data rates up to 1.1Gbps with low jitter

Propagation delay 4 ns (typical)

Random jitter 2.6 ps rms (typical)

1.1Gbps peak-to-peak total jitter 90 ps (typical)

2.5V or 3.3V power supply

−75 dBc power supply ripple suppression, phase spurious level

Anti-interference property

±8 kV IEC 61000-4-2 ESD protection across isolation grids

High common-mode transient immunity: >25 kV/μs

Exceeding EN 55022 Level B radiation emission limit, PRBS is 1.1 Gbps

Safety and regulatory approval (20-pin SOIC_W package)

UL (pending) : 5000 V rms for 1 minute, compliant with UL 1577

CSA Component Acceptance Notification 5A (Pending application)

VDE Certificate of Conformity (pending application)

DIN V VDE V 0884-10 (VDE V 0884-10):2006-12

VIORM = 424 VPEAK

Fail-safe output high under open, short and terminated input conditions (ADN4655/ADN4656)

Operating temperature range: −40°C to +125°C

7.8mm minimum creepage distance and clearance
