Introduction

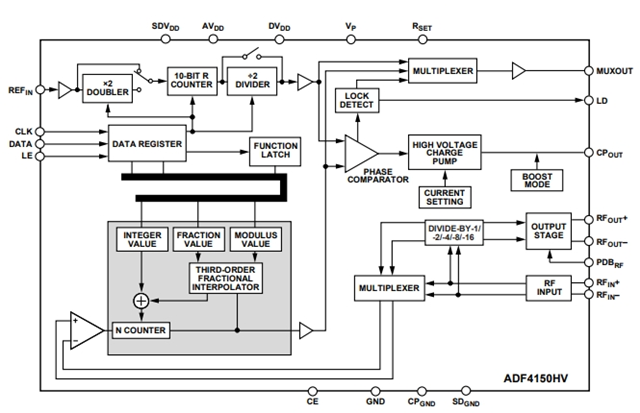

The ADF4150HVBCPZ is a 4.4 GHz fractional N division or integer N division frequency synthesizer with an integrated high voltage charge pump. The frequency synthesizer can be used to drive an external wideband VCO directly, enabling higher tuning voltages without the need for an op-amp. The VCO frequency can be divided by 1/2/4/8 or 16, so users can generate RF output frequencies as low as 31.25 MHz. For applications that require isolation, the RF output stage can be muted. The mute function can be controlled either by pins or software.

All on-chip registers are controlled through a simple three-wire interface. The charge pump is powered from 6 V to 30 V, while the rest of the ADF4150HVBCPZ device is powered from 3.0 V to 3.6 V and can be turned off when not in use.

Key features of the ADF4150HVBCPZ include:

Decimal N synthesizers and integer N synthesizers ‌ : can be used with external voltage-controlled oscillators (VCO), loop filters, and external reference frequencies to implement decimal N division or integer N division phase locked loop (PLL) frequency synthesizers ‌.

Programmable frequency division output ‌ : Supports 1/1, 1/2, 1/4, 1/8 and 1/16 frequency division output ‌.

Power management ‌ : Has independent charge pump power supply (VP), allowing extended tuned voltage range ‌ in 3V systems.

Dual mode predivider ‌ : Programmable dual mode predivider with 4/5 or 8/9 ‌.

Output power control ‌ : Programmable output power level and RF output mute function, which can be controlled by pin or software ‌.

Interface type ‌ : 3-wire serial interface, supporting analog and digital phase-locked detection ‌.

The main technical specifications of the ADF4150HVBCPZ include:

Frequency range ‌ : The ADF4150HVBCPZ has a maximum output frequency of 3GHz‌

Power supply voltage ‌ : The working voltage is 3V to 3.6V‌

Working temperature ‌ : The working temperature range is -40℃ to +85℃‌

Package ‌ : LFCSP-32 (5x5) package ‌

Application field

The ADF4150HVBCPZ is widely used in a variety of applications requiring frequency synthesis, including but not limited to:

Wireless infrastructure

Microwave point-to-point (multi-point) radio

VSAT radio

Test equipment

Military and radar applications

Private/land mobile radio

These features and functions make the ADF4150HVBCPZ have a wide application prospect in wireless communication, test equipment and other fields.
