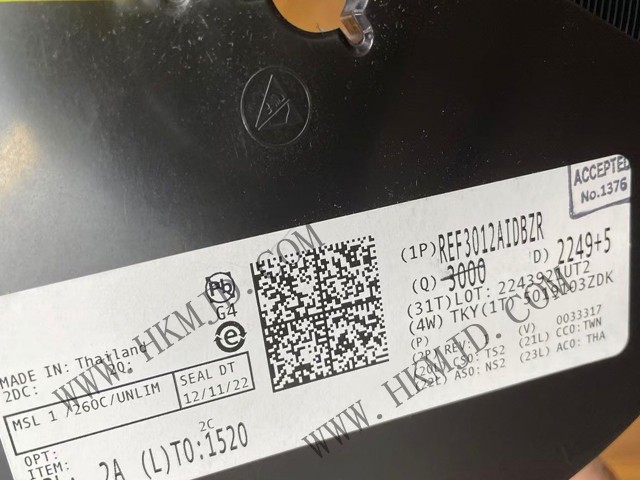

Mingjiada Electronics——[Supply] REF3012AIDBZR (TI) Series Voltage References

Shenzhen Mingjiada Electronics Co., Ltd. has been supplying REF3012AIDBZR (TI) series voltage reference chips for a long time, the following are its product details:

1. REF3012AIDBZR Basic parameters

Model: REF3012AIDBZR

Voltage - Output (minimum/fixed): 1.25V

Current - Output: 25 mA

Tolerance: ±0.2 per cent

Temperature Coefficient: 75ppm/°C

Noise - 0.1Hz to 10Hz: 14µVp-p

Noise - 10Hz to 10Hz: 42µVrms

Voltage - Input: 1.8V ~ 5.5V

Current - Supply: 50µA

Operating Temperature: -40°C ~ 125°C (TA)

2. REF3012AIDBZR Package

Package Type: SOT-23-3 (DBZ)

Number of pins: 3

3. REF3012AIDBZR Features

Low power consumption: Suitable for battery-powered devices.

High accuracy: ±0.2% initial accuracy, suitable for precision applications.

Low temperature coefficient: 50 ppm/°C to ensure stable output voltage during temperature change.

Small package: SOT-23-3 package, suitable for space-constrained designs.

4. REF3012AIDBZR Application Areas

Portable devices: e.g. smart phones, tablet PCs.

Industrial control systems: e.g. PLC, sensor interface.

Medical devices: such as portable monitors.

Communication equipment: e.g. base stations, network equipment.

5. REF3012AIDBZR Advantages

High Stability: Stable over a wide temperature range.

Low noise: suitable for high-precision analogue circuits.

Easy to design: small package and low power consumption simplify circuit design.

The REF3012AIDBZR is a family of precision, low power, low dropout voltage references in a miniature 3-pin SOT-23 package.The REF3012AIDBZR features excellent temperature drift and initial accuracy, and operates at 42 µA quiescent current (typical).

For more information about REF3012AIDBZR, please visit the website of Minjiada Electronics (www.hkmjd.com).
