Overview

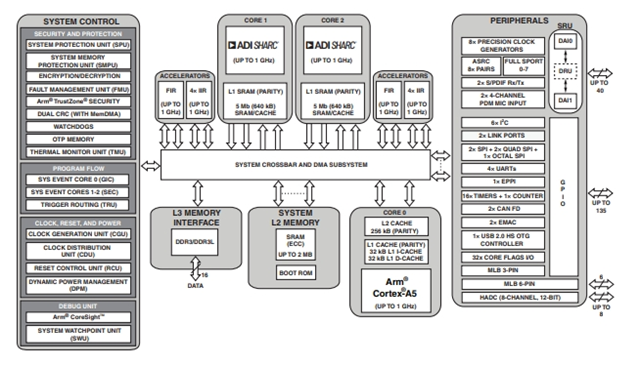

The ADSP-21593KBPZ10 is a high-performance ‌ dual SHARC+® core digital signal processor (DSP) ‌, introduced by ‌ Analog Devices Inc. ‌. It belongs to the SHARC® series and can be used as high as ‌1 GHz‌. The package is ‌400-FBGA (17mm×17mm) ‌, specially designed for scenarios with high floating point operation requirements ‌.

The ADSP-21593KBPZ10 delivers twice the audio performance of its predecessor, the single-SHARC + core ADSP-2156x, while maintaining pin compatibility in a BGA package with 2 GHz design scalability.

The ADSP-21593KBPZ10 processor supports ‌ 32/40/64-bit floating point operation ‌, integrates large-capacity on-chip SRAM and rich peripheral interfaces, and is suitable for the fields of audio processing, industrial automation and automotive electronics ‌.

Main characteristics

1. Dual-core architecture and high performance computing ‌

The ADSP-21593KBPZ10 is equipped with ‌ dual SHARC+ core ‌, providing twice the audio performance of a single-core processor, the main frequency can reach ‌1 GHz‌, and supports SIMD (single instruction multiple data) parallel processing ‌.

Integrated ‌2x640KB L1 SRAM‌ Shared L2 SRAM‌ (with ECC protection) with ‌2048KB, ADSP-21593KBPZ10 optimized for low latency ‌.

‌2. Advanced storage and interface extension ‌

Support ‌DDR3L memory interface (16-bit, 1.35V) ‌, ADSP-21593KBPZ10 can be connected to an external high-speed memory ‌.

ADSP-21593KBPZ10 integrates ‌CAN, Ethernet, USB OTG, SPI, I2C‌ and other communication interfaces, suitable for complex system integration ‌.

3. Dedicated hardware acceleration and safety functions ‌

The ADSP-21593KBPZ10 has built-in ‌ enhanced FIR/IIR filter unloading engine ‌, which runs at the kernel clock frequency to improve signal processing efficiency ‌.

Integrated ‌ secure encryption engine (supporting OTP) ‌, to ensure data security ‌.

4, wide temperature and industrial reliability ‌

The operating temperature ranges from ‌-40℃ to +125℃‌. The ADSP-21593KBPZ10 meets the requirements of industrial and automotive electronic environment ‌.

Application field

1, professional audio processing: ADSP-21593KBPZ10 is suitable for high-end audio equipment (such as mixer, effect device), support multi-channel ‌TDM/I2S audio interface ‌ and ‌S/PDIF transmission ‌, to achieve low delay audio processing ‌.

2, automotive electronic system ‌ : kbpz10 ADSP - 21593 CAN be used for ‌, ‌, ‌ car infotainment system battery management system (BMS) ‌ and ‌, ‌ automated driving domain controllers by ‌, ‌ CAN bus with ‌ Ethernet ‌ ‌ realize high-speed data interaction.

3, industrial automation and AIoT‌ : ADSP-21593KBPZ10 support ‌EtherCAT real-time communication ‌ and ‌ high-precision motion control ‌, suitable for industrial robots, servo drive and intelligent sensors ‌.

4. Test and measurement equipment ‌ : With high floating-point performance, ADSP-21593KBPZ10 can drive spectrum analyzer, RF test instrument, and realize complex signal processing algorithm ‌.

Summary ‌ : With dual-core SHARC+ architecture, large storage capacity, and rich peripheral interfaces, ADSP-21593KBPZ10 is an ideal choice for high-performance embedded systems.

If you need to purchase ADSP-21593KBPZ10 processor, please visit our official website (www.hkmjd.com) for consultation.
