The MAX25300AATA is a low-noise linear regulator that delivers up to 500mA of output current and only 12μVRMS of output noise in the frequency range of 10Hz to 100kHz. The MAX25300AATA regulator maintains ±1% output accuracy over a wide input voltage range and requires only 100mV input-output margin at full load. 365μA no load power supply current does not affect the pressure difference.

The MAX25300AATA has nine pin selectable output voltages: 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.1V, 3.3V, 4.0V and 5V. The regulator is available in an 8-pin TDFN package.

MAX25300AATA Key parameters

Input voltage range: 1.7V to 5.5V

Output noise: 12μVRMS

Power supply current: 365μA

PSRR: 70dB

Output current: 500mA

Device package: TDFN-8

Class: AEC-Q100

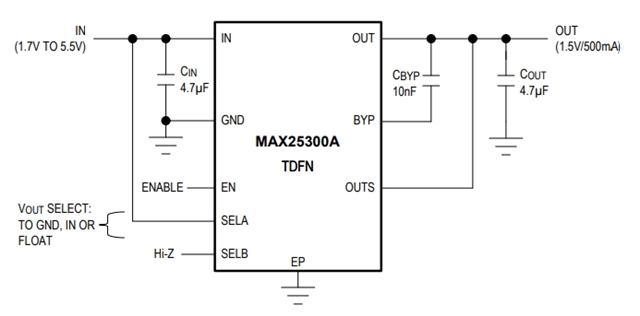

MAX25300AATA circuit diagram

Core features ‌

Wide input voltage range ‌ : MAX25300AATA supports 1.7V to 5.5V inputs, suitable for various power supply scenarios ‌.

Ultra-low noise performance ‌ : MAX25300AATA output noise is only 12μVRMS (10Hz-100kHz frequency band), suitable for high precision analog circuits ‌.

High power supply rejection ratio (PSRR)‌ : 70dB@10kHz, effective suppression of input power interference ‌.

High current output capability ‌ : the maximum output current is 500mA, to meet the requirements of medium and high power consumption load ‌.

Low pressure difference characteristic ‌ : the pressure difference is only 100mV (3.6V input) when the full load is 500mA, improving energy efficiency ‌.

Vehicle specification reliability ‌ : MAX25300AATA is AEC-Q100 certified, operating temperature range -40°C to +125°C, suitable for in-vehicle electronics ‌.

Small package design ‌ : MAX25300AATA in 2mm x 2mm TDFN-8 package, saving PCB space ‌.

Configurable output voltage ‌ : MAX25300AATA Fixed voltage (1.2V-5.0V) via pin selection to simplify the design ‌.

Low static power consumption ‌ : no load static current is only 365μA, optimize battery powered device life ‌
