The ADV7393WBCPZ is a single-chip, high-speed, digital-analog video encoder manufactured by ADI, part of the ADV7393 family ‌. Optimized for low-power operation, the series encoders are extremely small in size and require few external components, making them ideal for portable and power-sensitive applications such as mobile phones, digital cameras, portable media and DVD players ‌.

The ADV7393WBCPZ encoder has a 16-bit video input port and can be configured in a variety of ways. It also supports SD RGB input. The ADV7393WBCPZ supports embedded EAV/SAV timing codes, external video synchronization signals, and I2C and SPI communication protocols.

In addition, the ADV7393WBCPZ adopts LFCSP-40 package and supports multi-format video encoding, which is suitable for portable devices, vehicle systems and consumer electronics ‌.

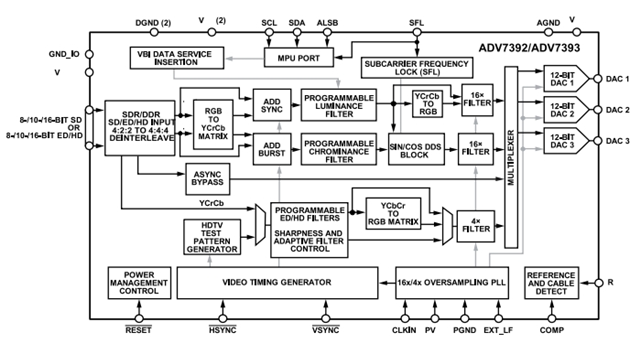

ADV7393WBCPZ block diagram

Main characteristics

1. ‌ video output ‌ : ADV7393WBCPZ supports composite (CVBS), S video (YC) or component (YPrPb/RGB) analog output in Standard definition (SD) and high definition (HD) video formats. Multiple video input and output formats are supported, including 4:2:2 YCrCb (SD, ED, and HD) and 4:4:4 RGB (SD) ‌.

2, ‌ low power ‌ : ADV7393WBCPZ has automatic cable TV signal detection and DAC automatic shutdown features to ensure that power consumption is kept at a minimum level. Each DAC has independent switching control and supports hibernation mode to further reduce power consumption ‌.

3, ‌ interface ‌ : ADV7393WBCPZ supports I2C and SPI communication protocols, suitable for a variety of video synchronization signals ‌.

4. ‌ package ‌ : ADV7393WBCPZ adopts 40-pin 6mm×6mm LFCSP package.

Typical application scenario

1. Consumer electronics ‌

Portable device video output ‌ : ADV7393WBCPZ is widely used in mobile phones, digital cameras and portable media players, supporting the conversion of digital video signals into analog signals such as CVBS and S-Video, and realizing the TV output function ‌.

Game and audio and video equipment ‌ : ADV7393WBCPZ suitable for portable game consoles, DVD players and digital cameras, provides low power consumption, high image quality video coding capabilities, to meet the requirements of NTSC/PAL/SECAM multi-format compatibility ‌.

2. Vehicle infotainment system

Vehicle video interface module ‌ : ADV7393WBCPZ has passed AEC-Q100 certification and supports multi-format video display of vehicle infotainment system (such as navigation interface and reversing image). The operating temperature range covers -40℃ to +105℃ to ensure stability in extreme environment ‌.

3, industrial and security equipment

‌ surveillance system video processing ‌ : ADV7393WBCPZ provides 1920×1080 HD resolution output, ADAPTS to security cameras and industrial monitoring equipment, supports composite video transmission and integrates anti-interference design to ensure video signal reliability ‌.

Professional video equipment ‌ : ADV7393WBCPZ for set-top box (STB) and broadcast systems, support embedded EAV/SAV timing code and external synchronization signals, to achieve seamless docking with satellite TV, digital radio ‌.

If you need to obtain the price of ADV7393WBCPZ, please visit our official website (www.hkmjd.com).
