The AWR2544BGAMQRQ1 from (TI) : 76-81GHz FMCW satellite on-chip radar sensor for ADAS applications is introduced.

Instructions

The AWR2544BGAMQRQ1 is a single-chip millimeter wave sensor consisting of an FMCW transceiver. The device is capable of operating in the 76GHz to 81GHz (EHF) band and includes radar data processing elements and a rich set of on-board network peripherals. The AWR2544BGAMQRQ1 provides customers with additional LOP-on-package (LOP) antenna features to facilitate direct antenna connection to the package. The AWR2544BGAMQRQ1 is manufactured using TI's low-power 45nm RFCMOS process, enabling excellent integration with ultra-low BOM numbers in a small package. The AWR2544BGAMQRQ1 is designed for use in low-power, self-monitoring, ultra-accurate radar systems in the automotive sector.

The AWR2544BGAMQRQ1 includes a radio processor subsystem (RSS) that is responsible for radar front-end configuration, control, and calibration. In the main subsystem (MSS), the AWR2544BGAMQRQ1 implements a user-programmable Arm Cortex-R5F processor that allows custom control and automotive interface applications. The hardware accelerator block (HWA 1.5) complements the MSS by offloading common radar processing, such as FFT, expansion, and compression. This saves MIPS on external processors, freeing up resources for custom applications and implementing higher-level post-processing algorithms.

AWR2544BGAMQRQ1 Performance Parameters:

Transmit power ‌ : +12.5dBm

Received noise factor ‌ : +12.5dB

Phase noise ‌ : -96 DBC /Hz at 76GHz to 77GHz and -95 DBC /Hz‌ at 76GHz to 81GHz

‌AWR2544BGAMQRQ1 Processing element ‌ :

Arm® Cortex-R5F® core (supports lock step operation) at 300MHz

Includes TI Radar hardware accelerator (HWA1.5) for FFT, interference suppression, and memory compression

Multiple EDMA instances are used for data movement ‌

‌AWR2544BGAMQRQ1 interface ‌ :

Support 10/100/1000Mbps RGMII/RMII/MII Ethernet

Serial flash interface (loading user applications from QSPI flash)

Multiple ADC channels, SPI, UART, I2C, GPIO, EPWM and dual channel LVDS interfaces ‌

AWR2544BGAMQRQ1 Safety feature ‌ :

Embedded Hardware Security Module (HSM) with secure boot support for authentication and encryption

Supports encryption algorithms such as RSA-4K and ECC-512, and provides asymmetric keys with key revocation function ‌

Application scenario

1. ‌ADAS and automated driving system ‌

Forward radar and Angle radar ‌ : Support automatic emergency braking (AEB), blind spot detection and other functions, AWR2544BGAMQRQ1 through 76GHz to 81GHz frequency band to achieve high precision obstacle detection, detection distance of more than 200 meters ‌.

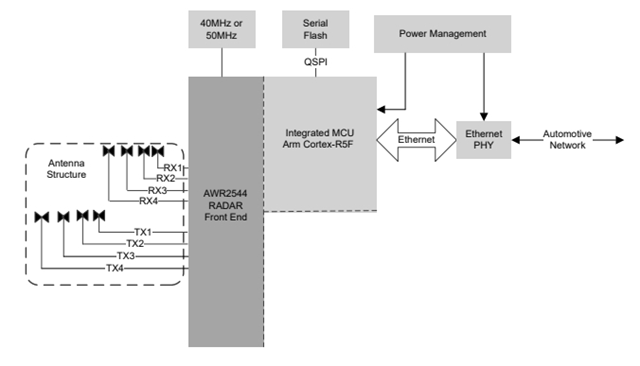

Satellite architecture integration ‌ : AWR2544BGAMQRQ1 adopts distributed system design, which can transmit part of the processed 1D FFT data to the central computing unit through 1Gbps Ethernet in real time to improve the vehicle's 360-degree perception ‌.

2. ‌ Industrial and aerospace sensing ‌

High precision radar detection ‌ : supports positioning, speed measurement and target tracking in the industrial Internet of things. AWR2544BGAMQRQ1 is suitable for obstacle avoidance of intelligent factory equipment and spacecraft data acquisition scenarios ‌.
