The AD9837ACPZ is a low-power, programmable waveform generator capable of producing sine, triangular and square wave outputs. Waveform generators are required for various types of detection, actuation, and time domain reflectometry (TDR) applications. The output frequency and phase can be programmed by software for easy adjustment. The frequency register is 28 bits: when the clock rate is 16 MHz, the AD9837ACPZ can achieve a resolution of 0.06 Hz; At a clock rate of 5 MHz, the AD9837ACPZ can achieve a resolution of 0.02 Hz.

The AD9837ACPZ writes data through a 3-wire serial interface. The serial interface is capable of operating at a clock rate of up to 40 MHz and is compatible with DSP and microcontroller standards. The AD9837ACPZ is powered by a 2.3V to 5.5V power supply.

The AD9837ACPZ has a SLEEP function. Unused parts of the device can be turned off to reduce power consumption to a low level. For example, the DAC can be turned off when producing clock output.

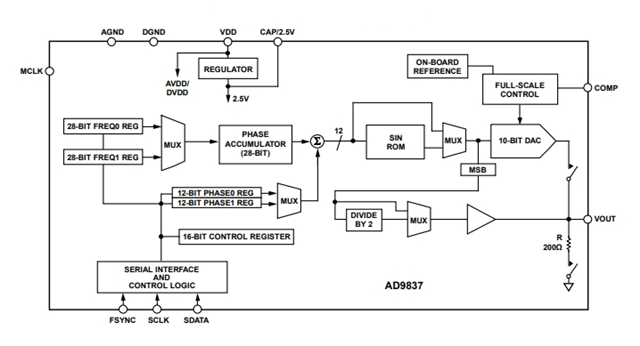

AD9837ACPZ block diagram

The AD9837ACPZ has the following main features:

Digital programmable frequency and phase

Power consumption: 8.5mW (2.3V hour)

MCLK Speed: 16 MHz (Class B), 5 MHz (Class A)

28-bit resolution: 0.06 Hz (16 MHz reference clock)

Sine wave/triangle wave/square wave output

2.3 V to 5.5 V power supply

Three wire SPI interface

Extended temperature range: -40 °C to +125°C

Off option

10-pin LFCSP package

AD9837ACPZ core application scenario

1, ‌ signal generator ‌ : support the generation of sine wave, triangle wave, square wave, AD9837ACPZ is suitable for testing instruments, sensor calibration and laboratory equipment in the reference signal source ‌.

2, ‌ communication system ‌ : integrates 2FSK, PSK, QPSK and other modulation functions, AD9837ACPZ is used for wireless communication module, frequency modulation equipment and short-distance data transmission system ‌.

3. ‌ medical equipment ‌ : low power consumption (typical 8.5mW) and high precision (28-bit frequency resolution), the AD9837ACPZ is suitable for portable medical monitor, ultrasonic probe driver and other scenarios ‌.

4, ‌ industrial control ‌ : wide temperature range (-40°C to +125°C), the AD9837ACPZ is used in industrial automation sensor signal generation, motor control and impedance spectrum analyzer ‌.

5, ‌ battery powered equipment ‌ : AD9837ACPZ supports low power consumption mode (static current 360μA), extend the battery powered equipment such as UAV, Internet of things terminal life ‌.
