Introduction

The ADV3003ACPZ is a 4-channel TMDS (Minimised transmission Differential signal) buffer with balanced input and pre-weighted output. Both the input and output terminals of the device are terminated with 50Ω resistors, providing full swing output signal recovery with minimal reflection and improving system signal integrity. The ADV3003ACPZ is designed for HDMI™/DVI applications and is ideal for systems with long cables, long PCB tracks, and internal wiring designs.

The ADV3003ACPZ is available in a 40-pin LFCSP table mount plastic encapsulation package that complies with RoHS standards. The rated operating temperature range is −40°C to +85°C.

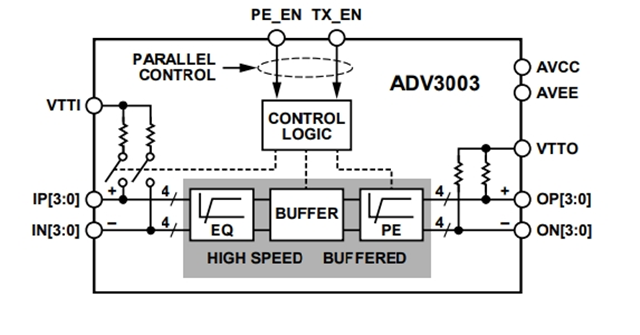

ADV3003ACPZ block diagram

Product features

1, Support up to 2.25Gbps data rate, ADV3003ACPZ can achieve 1080p dark (12-bit color) HDMI format and UXGA (1600 × 1200) DVI resolution above.

2. 12 dB Input cable The equalizer supports long cables for the input end. For a typical 24 AWG cable, the ADV3003ACPZ compensates for losses of more than 20 meters at a maximum data rate of 2.25 Gbps.

3, with the optional 6 dB output pre-weight function, the ADV3003ACPZ can drive high-loss output cables or longer PCB lines.

4, 50 Ω in-chip input and output matching terminal resistance can improve system signal integrity.

5, the external control pin PE_EN can set the output pre-weight to 0 dB or 6 dB.

6, the external control pin TX_EN disables both the transmitter and the on-chip input terminal resistor. This feature reduces the power consumption of the ADV3003ACPZ and informs the connected device source when the ADV3003ACPZ is disabled.

ADV3003ACPZ Key parameters

Package ‌ : 40 pin LFCSP (6×6 mm), RoHS compliant ‌.

Working temperature ‌ : -40°C to +85°C, suitable for wide temperature environment ‌.

Signal rate ‌ : The maximum support is 2.25Gbps, compatible with HDMI 1.3 and later ‌.

Supply voltage ‌ : 3.3V to 3.6V, typical power consumption is 100mW (static) ‌.

Application scenario

1. HDMI/DVI signal extension ‌ : ADV3003ACPZ is suitable for HDMI/DVI systems requiring long distance transmission or complex wiring, such as home theater, digital advertising screen and other scenes. Its 50Ω input/output terminal design reduces signal reflection and optimizes signal integrity ‌.

2, ‌ long cable compensation ‌ : built-in 12dB input equalizer, can compensate for long distance cable (such as 24 AWG cable more than 20 meters) signal attenuation, ADV3003ACPZ support data rate of up to 2.25Gbps, to meet 1080p dark HDMI and UXGA resolution above DVI requirements ‌.

3. ‌ high loss output driver ‌ : through the 6dB adjustable output pre-weight function, ADV3003ACPZ drives high loss PCB routing or long cable to ensure the output signal quality ‌.

4. ‌ low power control ‌ : supports the TX_EN external pin to disable the transmitter and input terminal to reduce power consumption. The ADV3003ACPZ is suitable for mobile devices or energy-saving scenarios ‌.
