Recycled, supply BGT24ATR11 (Infineon) a silicon germanium MMIC for signal generation and reception.

Description:

BGT24ATR11 is a silicon-germanium MMIC for signal generation and reception, operating in the 24 GHz ISM band from 24.00 to 24.25 GHz. It is based on a 24 GHz fundamental voltage controlled oscillator. Built-in switchable frequency pre-divider with output frequencies of 1.5 GHz and 23 kHz. The main RF output provides typical values. The 11dBm signal power can be used to feed the antenna and auxiliary LO output to provide the LO signal to a separate receiver assembly.

The LNA provides a low noise figure, and the RC polyphase filter (PPF) is used for LO quadrature phase generation of the homodyne quadrature down-conversion mixer. Output power sensors and temperature sensors are used for monitoring purposes. The device is SPI controlled and manufactured using 0.18µm SiGe: C technology with a cut-off frequency of 200 GHz. The MMIC is available in a RoHS compliant 32-pin pin-free VQFN package.

Features:

•24 GHz ISM band transceiver MMIC

• Compliant with AEC-Q100 standards

• Fully integrated low phase noise VCO

• Switchable pre-divider with 1.5GHz and 23 kHz outputs

• On-chip power and temperature sensors

• Gilbert based homodyne orthogonal receiver

• Single-ended RF and LO terminals

• Low noise factor NFSSB: 12 dB

• High conversion gain: 26 dB

• High 1 dB input compression point: -12 dBm

• Single supply voltage 3.3V

• Low power consumption of 500 MW

200 GHz bipolar SiGe: C technology B7HF200

• Full ESD protection device

•VQFN-32-9 pin-free plastic package, including LTI function

• Lead-free (RoHS compliant) package

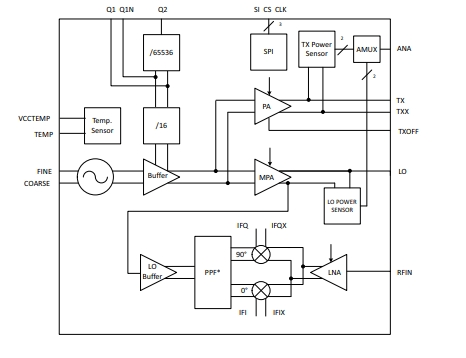

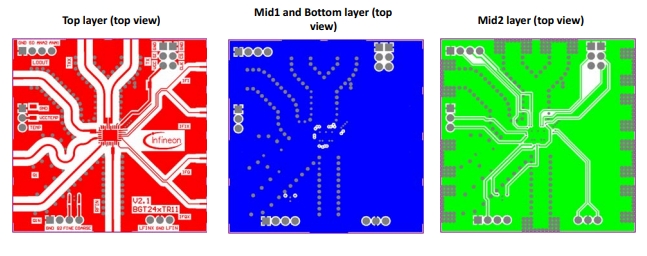

Application circuit diagram and block diagram:
