Sell MPS MP8009GV Switching Regulator Fully Integrated 802.3af/at Compatible PoE PD Interface

Sell MPS MP8009GV Switching Regulator Fully Integrated 802.3af/at Compatible PoE PD Interface

Source:our siteTime:2023-10-21Views:

Shenzhen Mingjiada Electronics Co., Ltd. new and original sale MPS MP8009GV Flyback/Forward Controller is an integrated IEEE 802.3af/at PoE compliant Powered Device (PD) power converter.Product OverviewThe MP8009GV interface contains all IEEE 802.3af/…

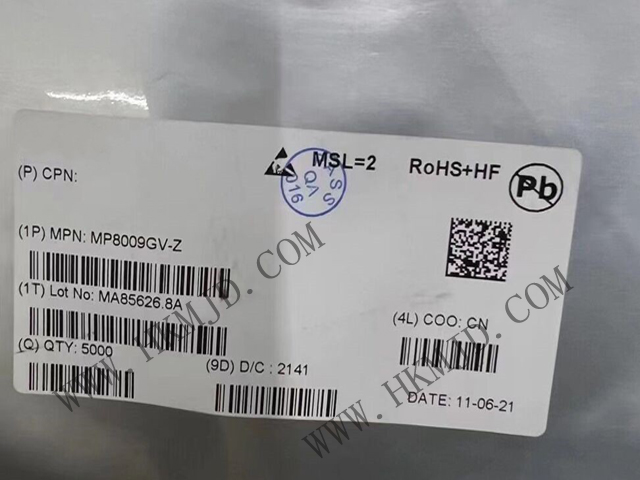

Shenzhen Mingjiada Electronics Co., Ltd. new and original sale MPS MP8009GV Flyback/Forward Controller is an integrated IEEE 802.3af/at PoE compliant Powered Device (PD) power converter.


Product Overview

The MP8009GV interface contains all IEEE 802.3af/at features including detection, 1-event and 2-event classification, 120mA inrush current limiting, 840mA operating current limiting, and 100V hot-swappable MOSFETs.


The MPS MP8009GV Flyback/Forward Controller is a space-saving, isolated solution with primary side regulation (PSR) for flyback applications and highly efficient secondary side regulation (SSR) for active-clamped forward applications.


The MP8009GV provides a front-end solution for PoE PD applications with minimal external components. The device provides overload protection (OLP), short circuit protection (SCP), overvoltage protection (OVP), and thermal shutdown.


The MP8009GV is available in a QFN-28 (4mm x 5mm) package with a fixed switching frequency of 250kHz.


Product Attributes

Type: Controller (PD), DC/DC

Number of Channels: 1

Internal Switch: No

Auxiliary function: Yes

Standards: 802.3at (PoE+), 802.3af (PoE)

Voltage - Supply: 0V ~ 57V

Current - Supply: 450µA

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

Package/Shell: 28-VFQFN Exposed Pad

Supplier Device Package: 28-QFN (4x5)


Applications

IEEE 802.3af/at compliant devices

Security cameras

Video phones

WLAN access points

Internet of Things (IoT) devices


If you have any requirement, please feel free to contact Mr Chen by phone:

Tel: +86 13410018555

Email: sales@hkmjd.com

Company Home：www.hkmjd.com
