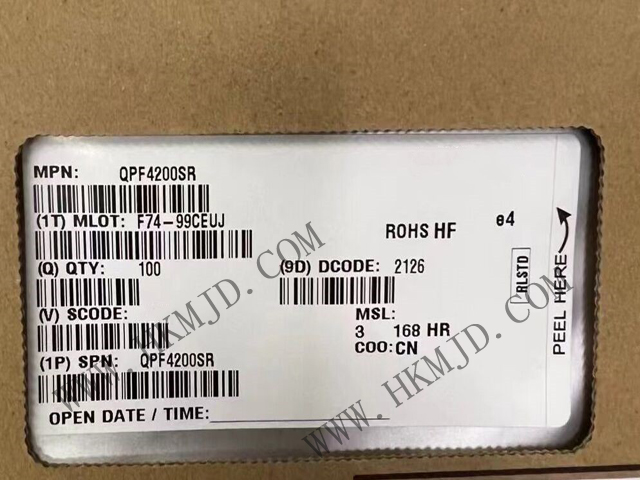

Supply (Qorvo) RF Front-End QPF4200SR 2.4 GHz Wi-Fi Front-End Module

Supply (Qorvo) RF Front-End QPF4200SR 2.4 GHz Wi-Fi Front-End Module

Source:our siteTime:2023-10-21Views:

Shenzhen Mingjiada Electronics Co., Ltd. supplies the new and original (Qorvo) RF front-end QPF4200SR is an integrated front-end module (FEM) designed for Wi-Fi 802.11ax systems.Key FeaturesPOUT = +19 dBm MCS11 HE40 -43 dB Dynamic EVMPOUT = +21 dBm MC…

Shenzhen Mingjiada Electronics Co., Ltd. supplies the new and original (Qorvo) RF front-end QPF4200SR is an integrated front-end module (FEM) designed for Wi-Fi 802.11ax systems.


Key Features

POUT = +19 dBm MCS11 HE40 -43 dB Dynamic EVM

POUT = +21 dBm MCS9 VHT40 -35 dB Dynamic EVM

POUT = +22.5 dBm MCS7 HT20/40 -30 dB dynamic EVM

POUT = +25 dBm MCS0 HT20 Spectral Mask Compliance

Optimised for +5 V operation

33 dB Tx gain

2.1 dB noise figure

15 dB receive gain and 6 dB bypass loss

25 dB 5 GHz receive path rejection

Integrated DC power detector


Performance is focused on optimising the power amplifier for a 5 V supply voltage, saving power while maintaining the highest linear output power and leading throughput. The receive path is best-matched to maximise receive sensitivity by maintaining consistent noise figure performance over a wider range of conditions.


The QPF4200SR also integrates chip-level filters for the 2nd and 3rd harmonics, as well as 5 GHz suppression for DBDC operation.


The QPF4200SR integrates a 2.4 GHz power amplifier (PA), voltage regulator, single-pole, double-throw switch (SP2T), bypassable low-noise amplifier (LNA), and DC power detector in a single device.


Typical Applications

Access points

Wireless routers

Client devices

Client devices

Internet of Things


If you are interested, please feel free to call Mr Chen:

Tel: +86 13410018555

Email: sales@hkmjd.com
